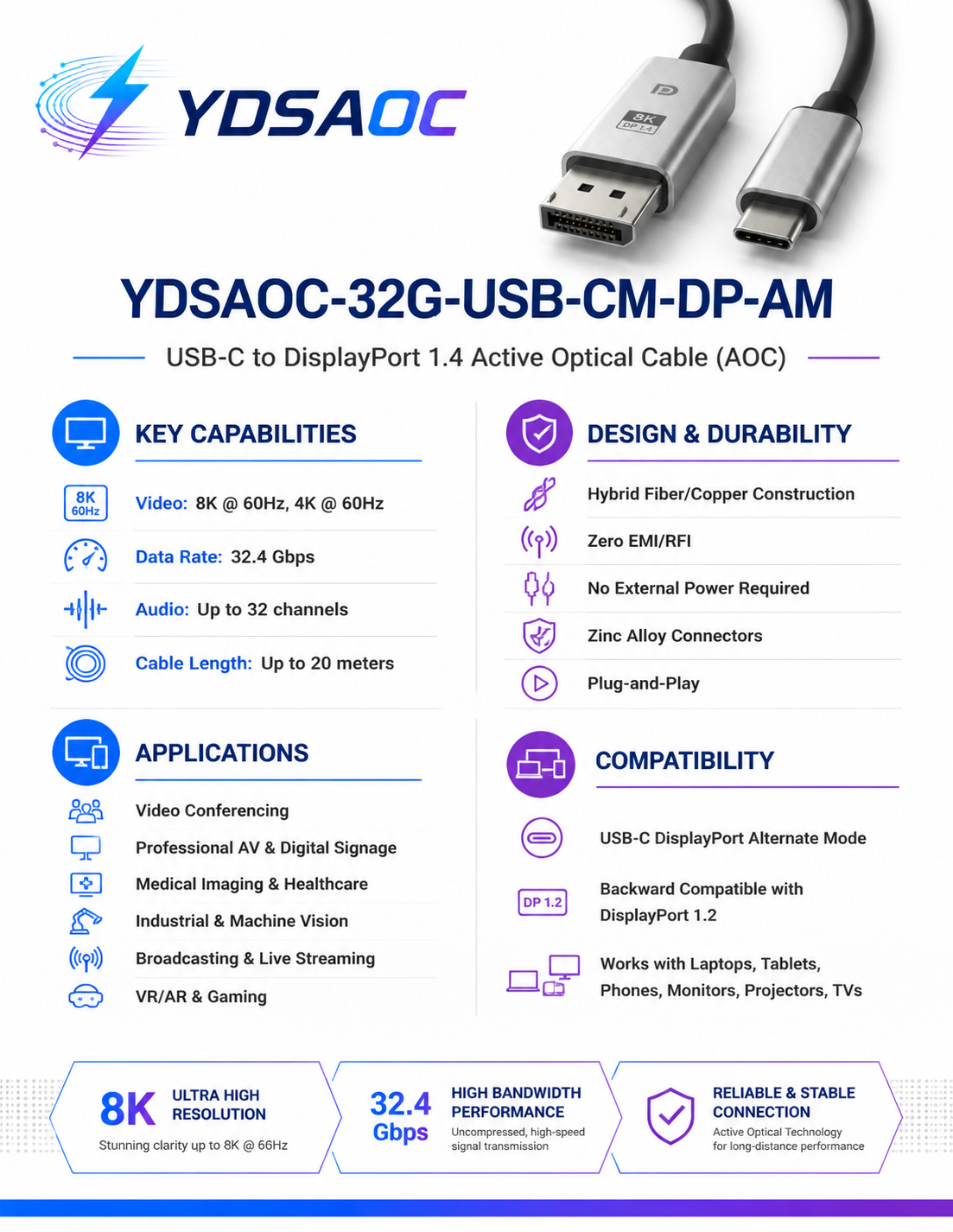

Overview

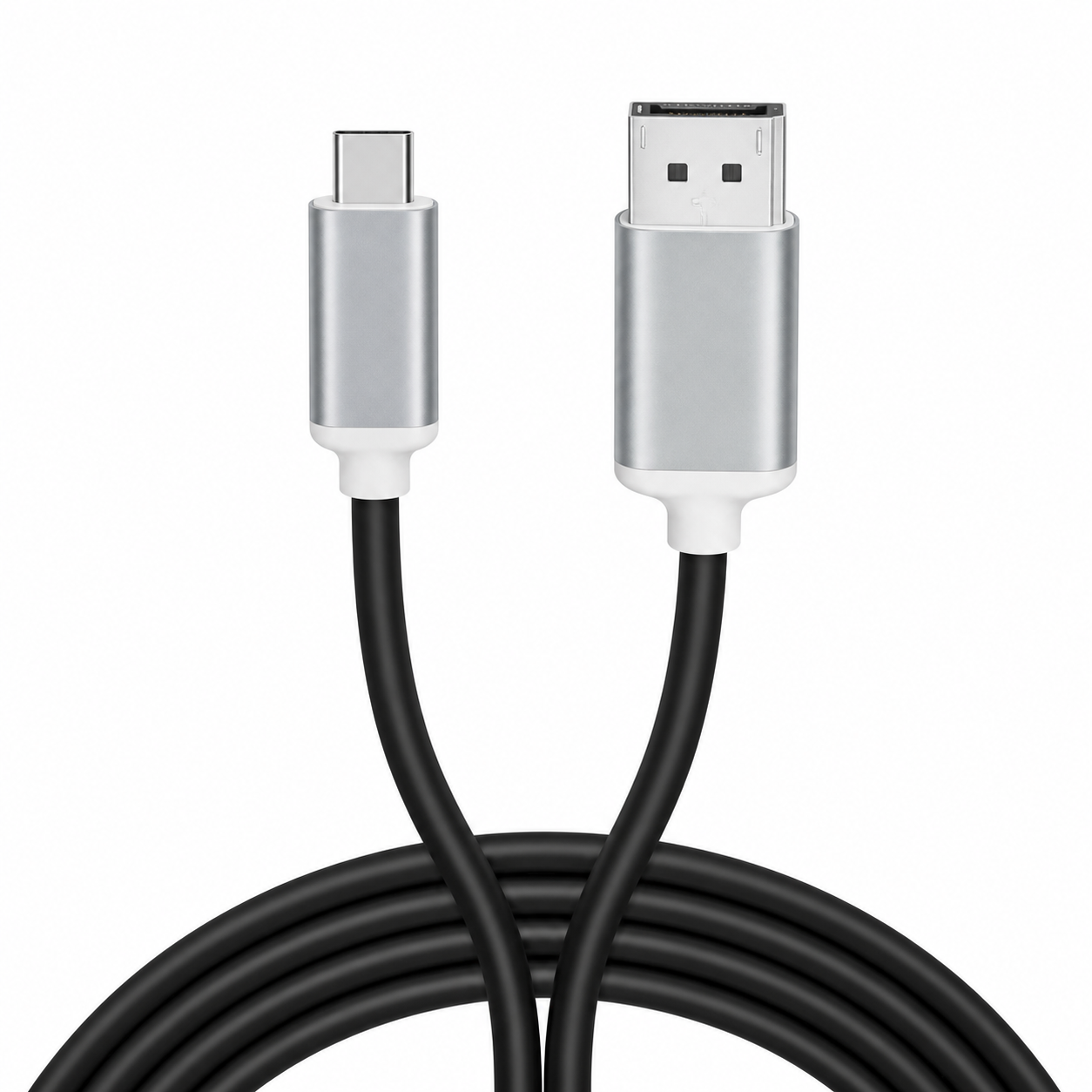

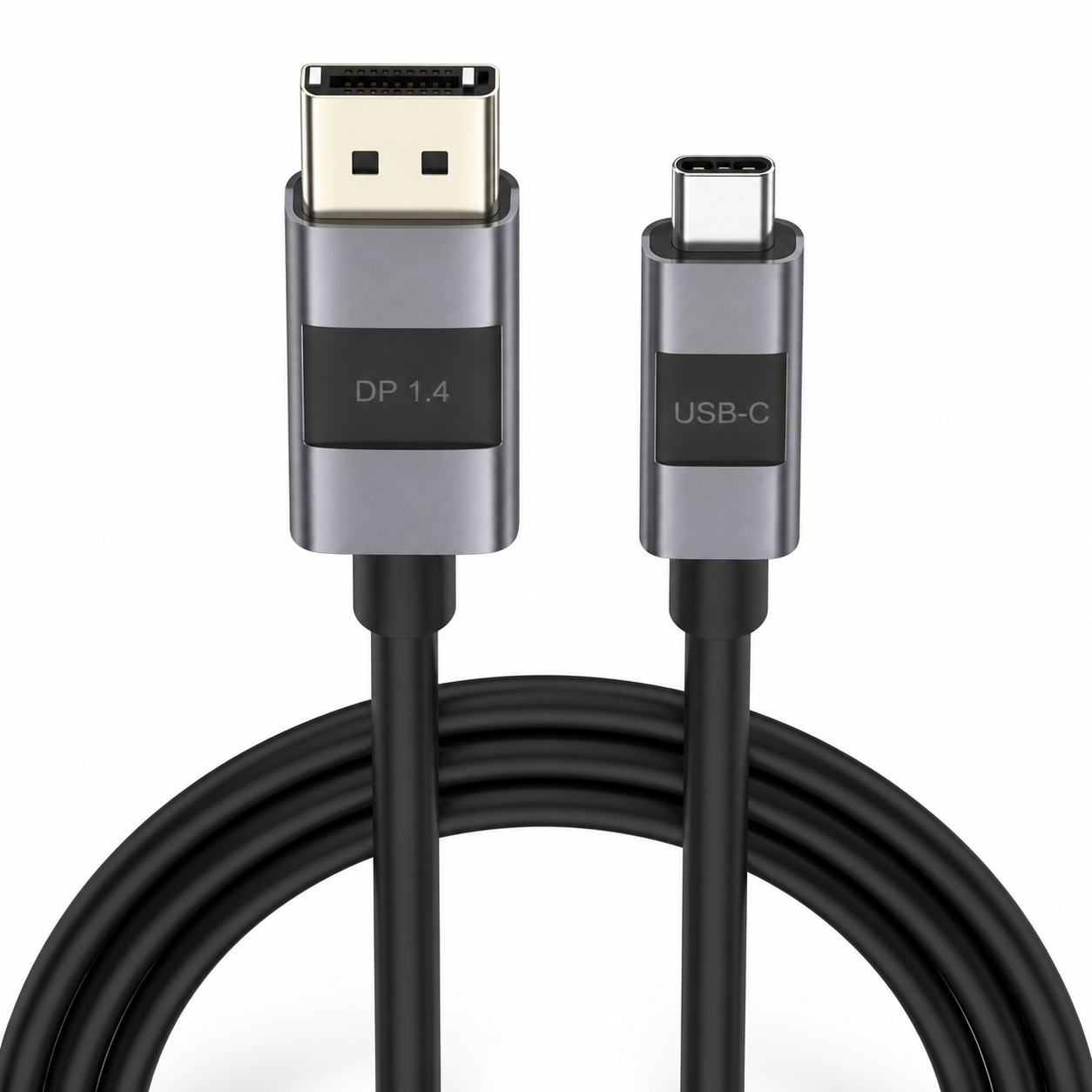

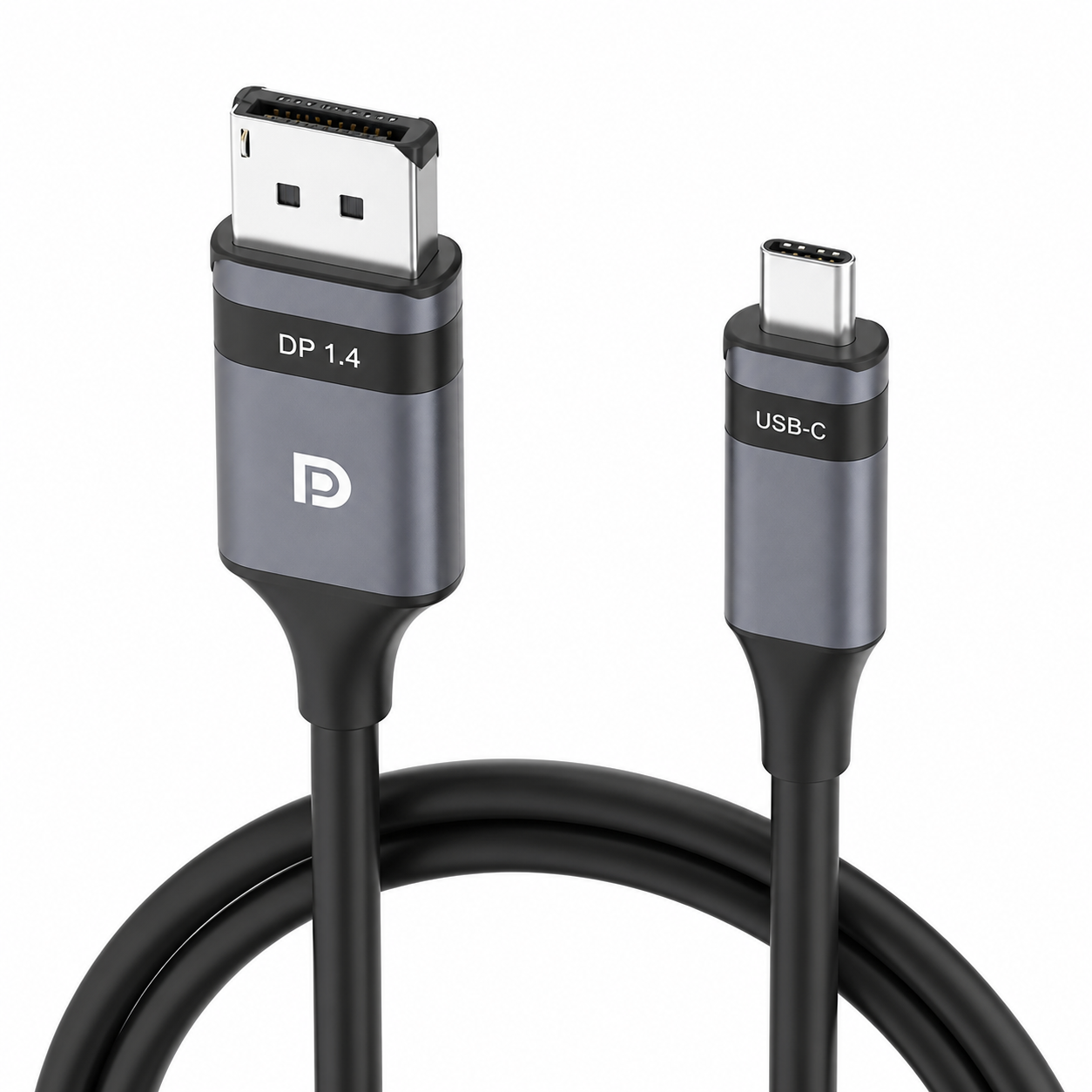

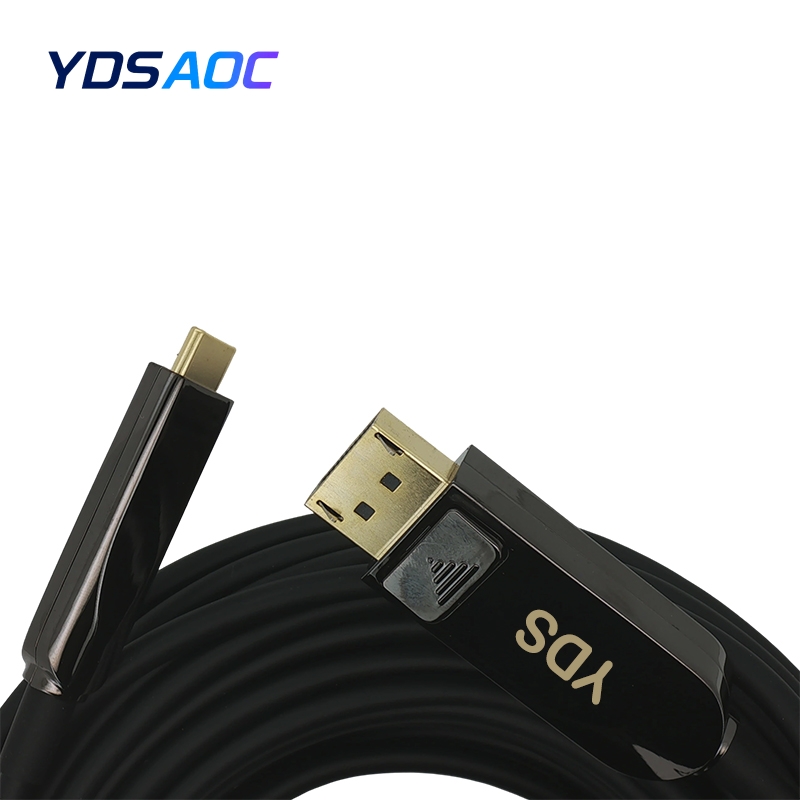

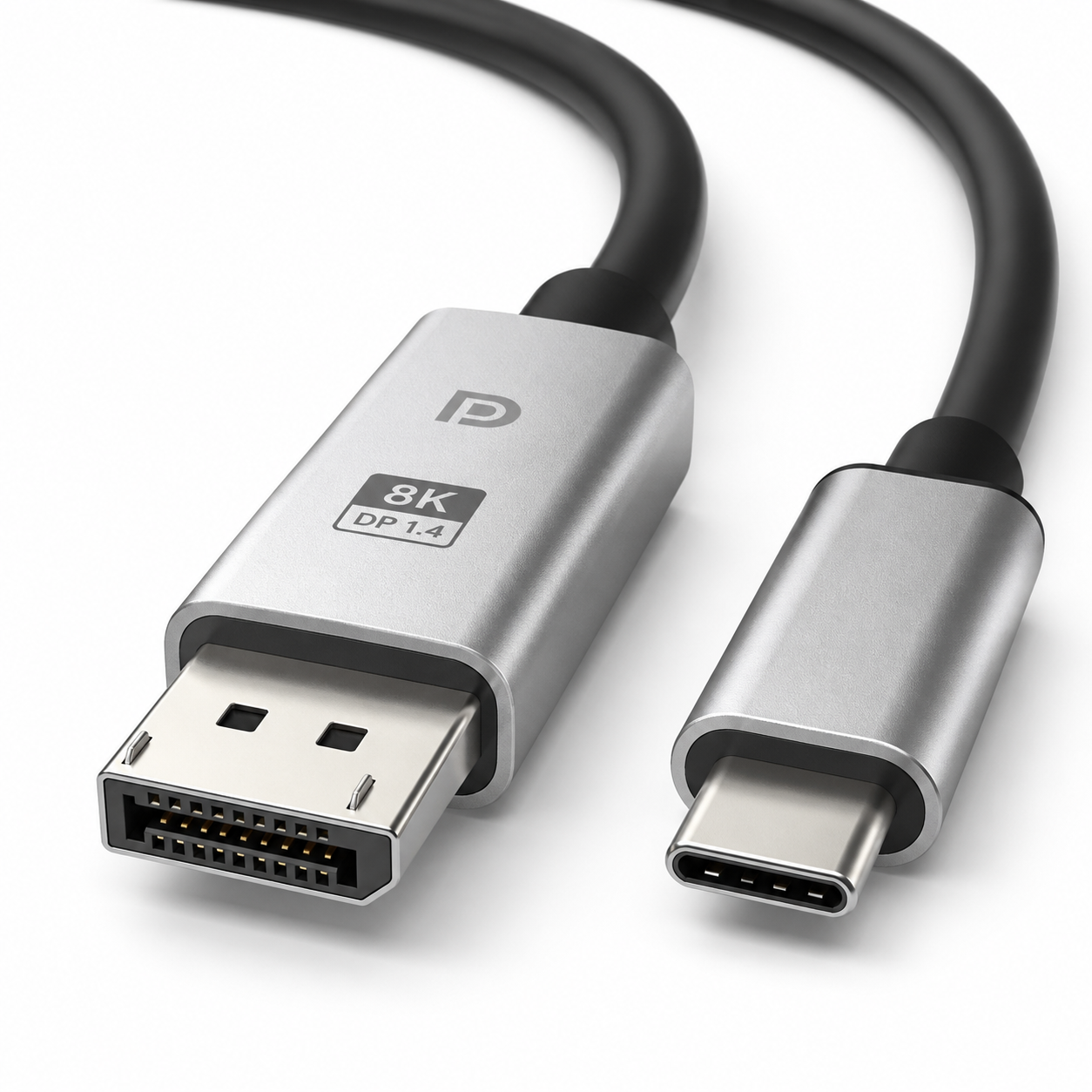

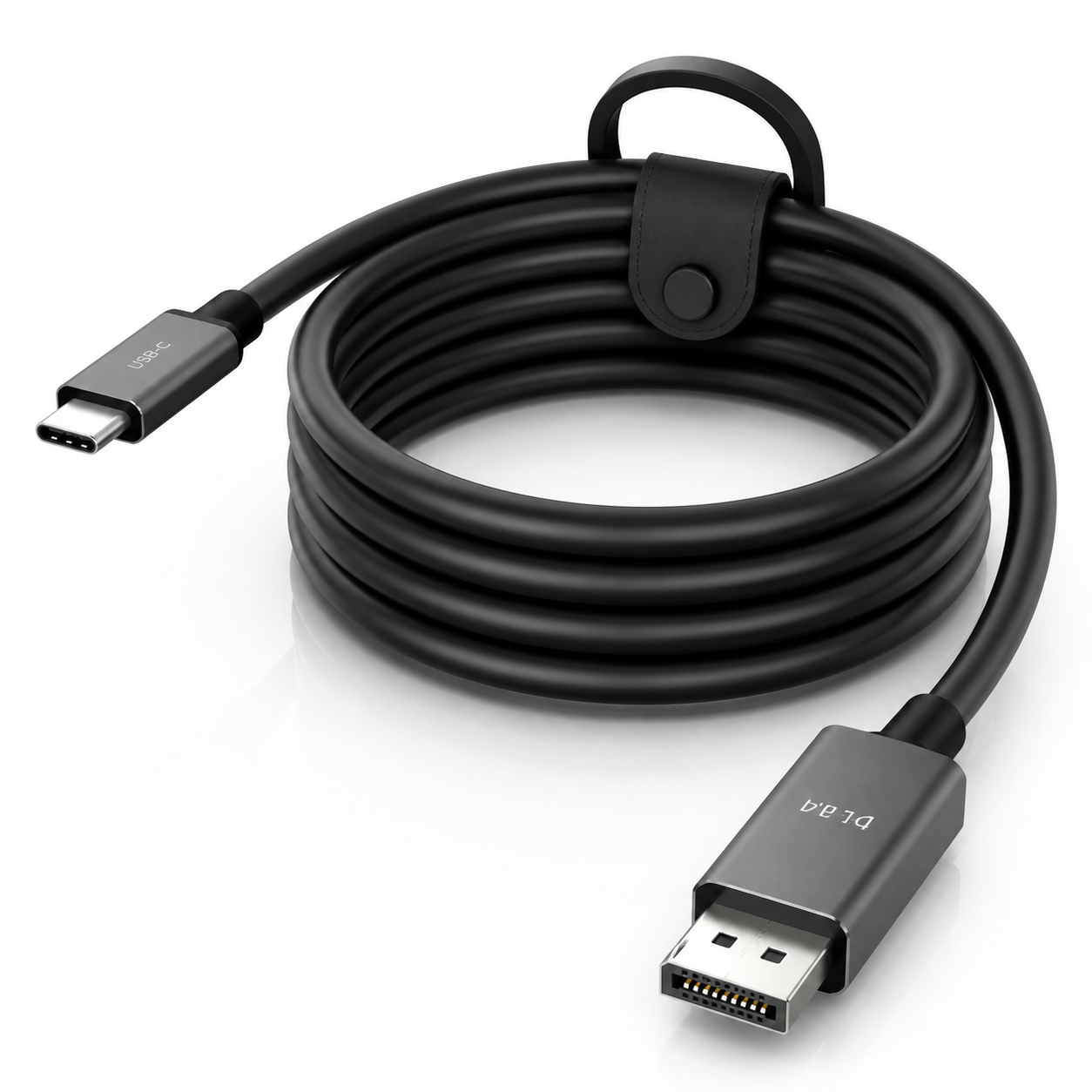

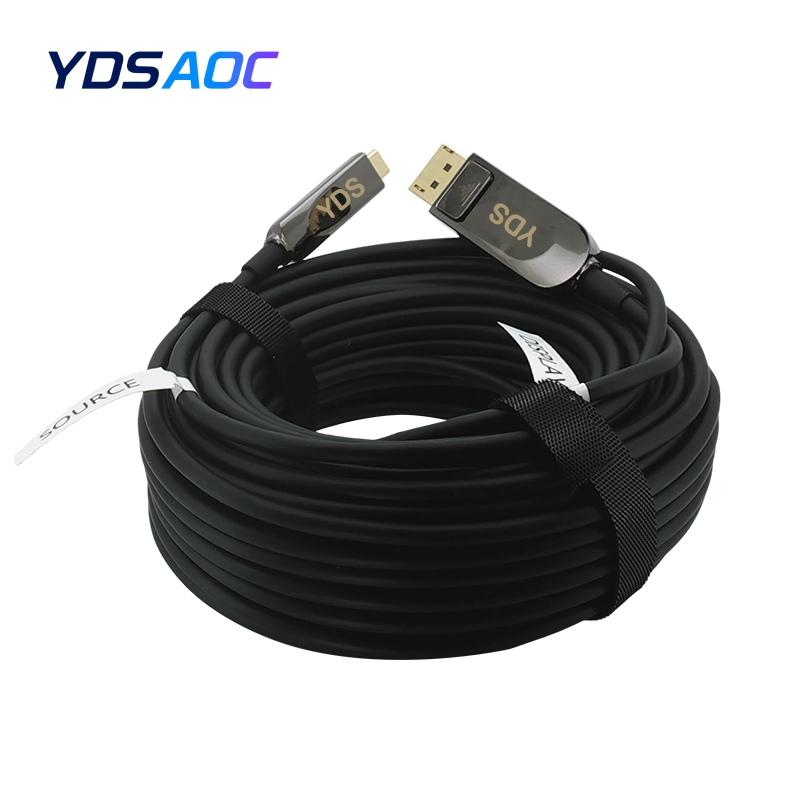

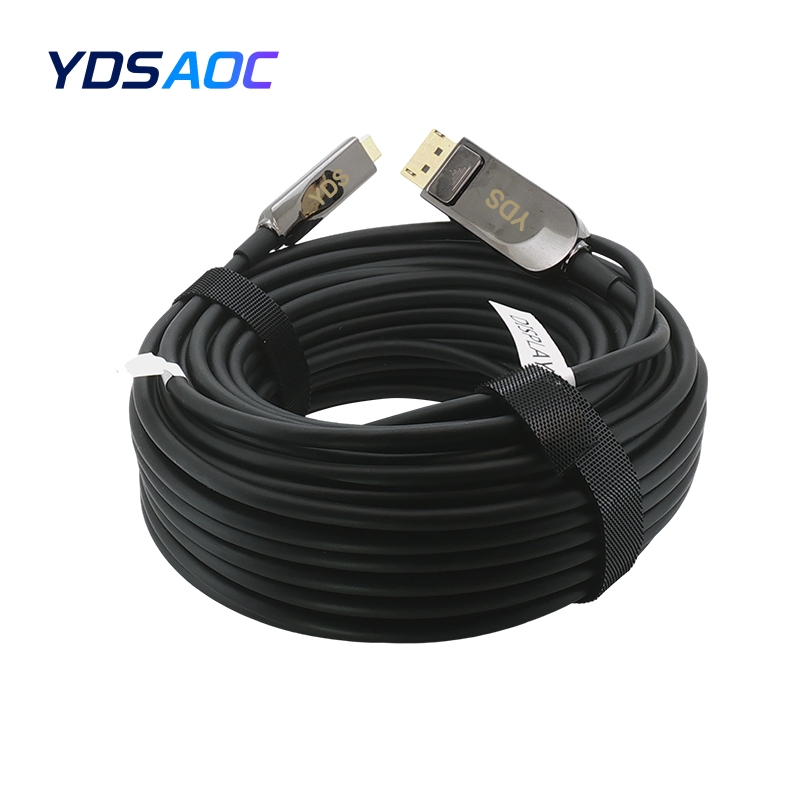

YDSAOC-32G-USB-CM-DP-AM is a high-performance USB-C to DisplayPort 1.4 Active Optical Cable (AOC) engineered for professional-grade video and audio transmission. Using a hybrid fiber/copper construction, it extends ultra-high-definition signals up to 20 meters (about 60 ft), which copper cables cannot reliably achieve.

Key Capabilities

• Video: Supports up to 8K @ 60Hz (7680 × 4320, 4:2:0) and 4K @ 60Hz, along with 4K 30Hz, 1080p, 1080i, and 720p
• Data rate: 32.4 Gbps bandwidth per DisplayPort 1.4 specification
• Audio: Up to 32 audio channels with 1536 kHz sampling, supporting PCM 8-Channel, DTS-HD, and Dolby Digital True HD Surround Sound
• Enhanced visuals: HDR, BT.2020 colorimetry, 21:9 cinema aspect ratio, dual video stream delivery
• Mode flexibility: Supports both mirror and extend display modes

Design & Durability

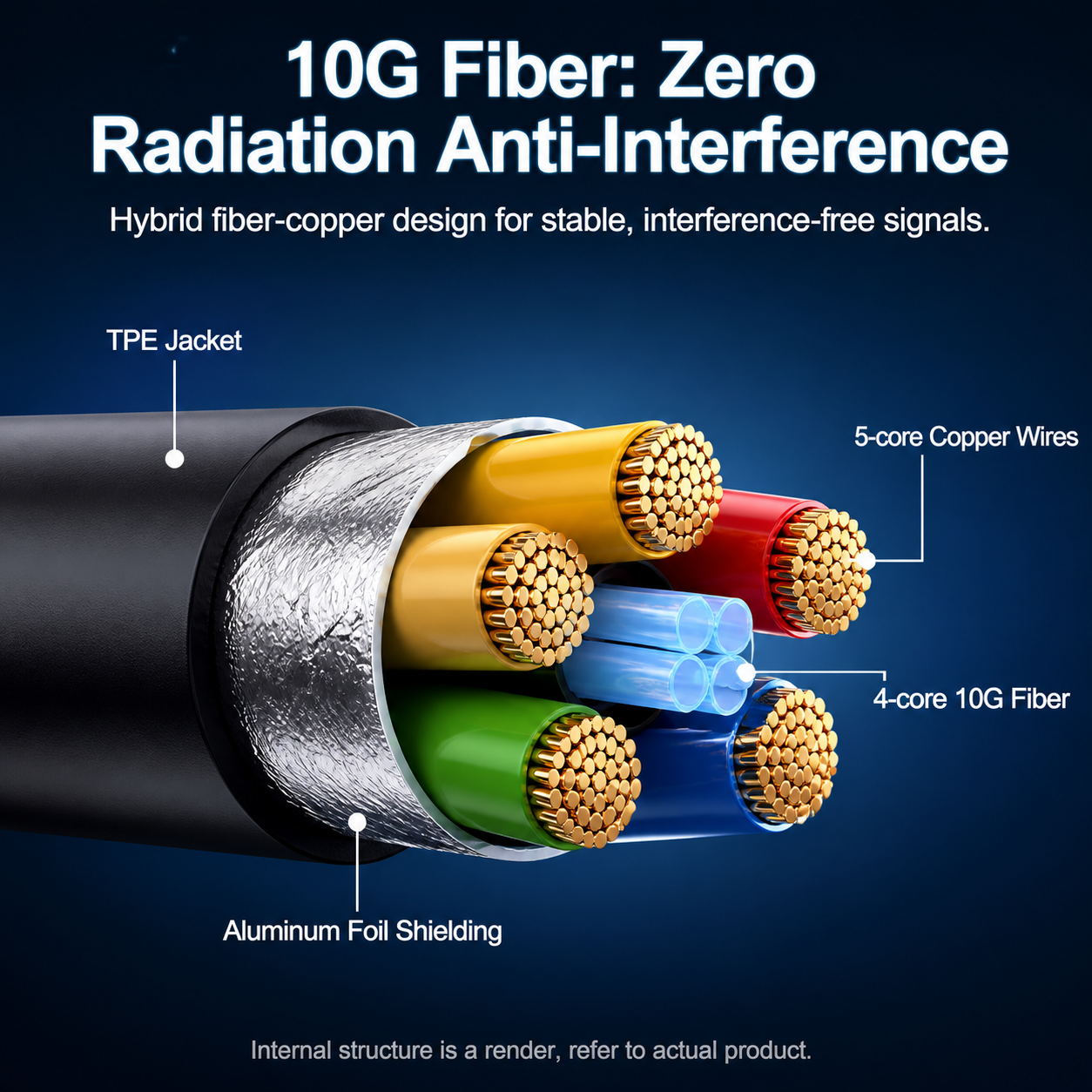

• Hybrid fiber/copper build delivers near-zero EMI/RFI, providing a radiation-free, stable signal
• No external power required (power delivered over the cable); ultra-low power consumption

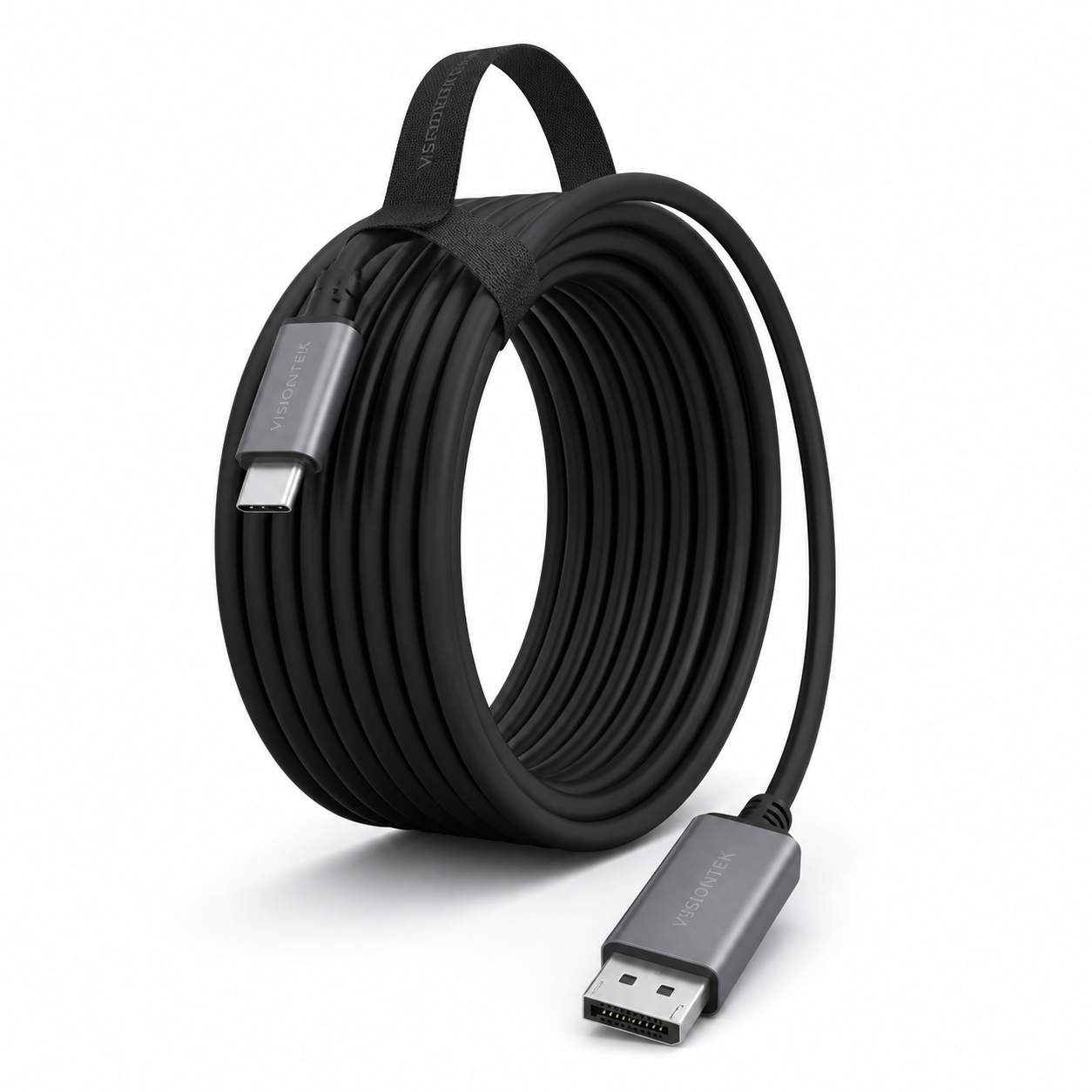

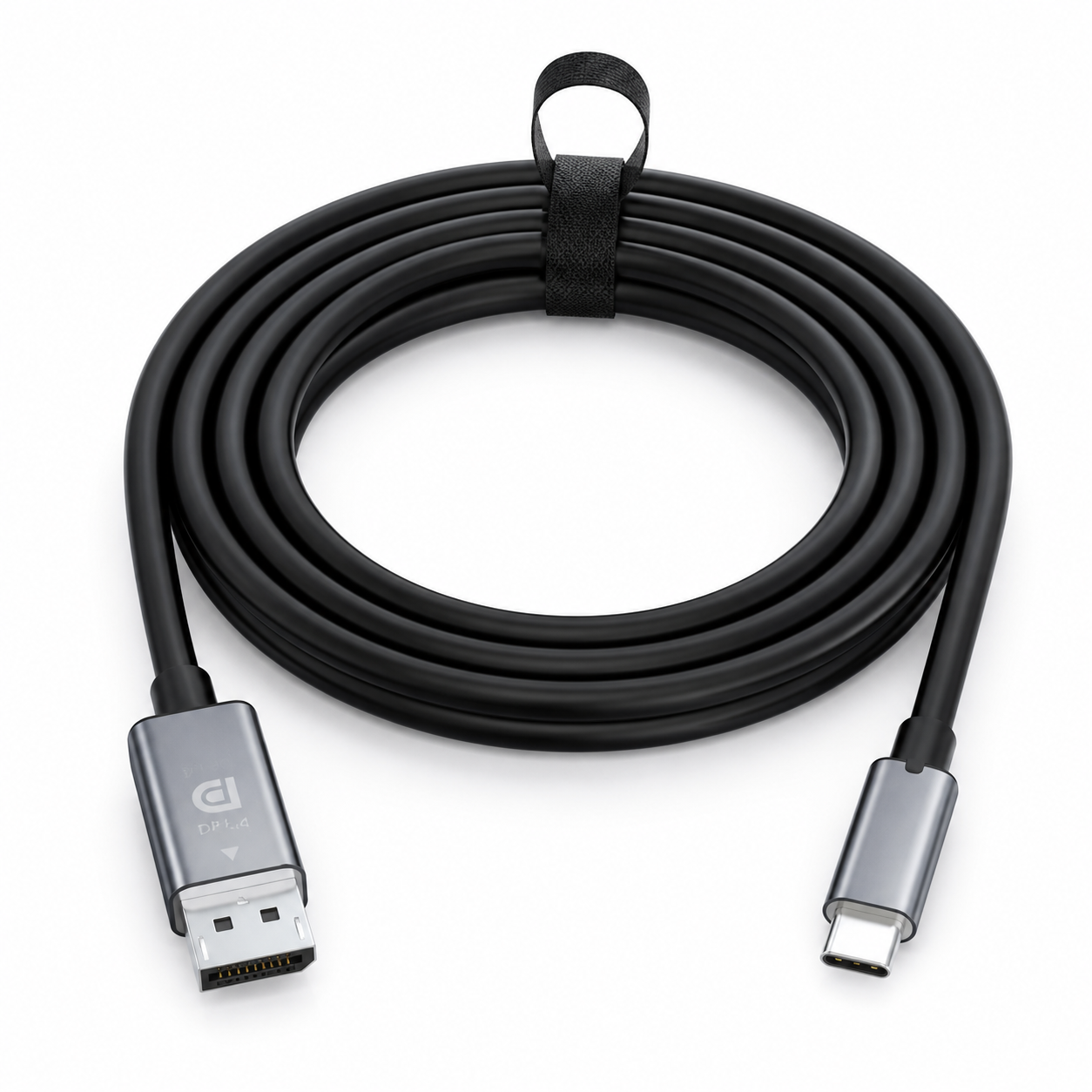

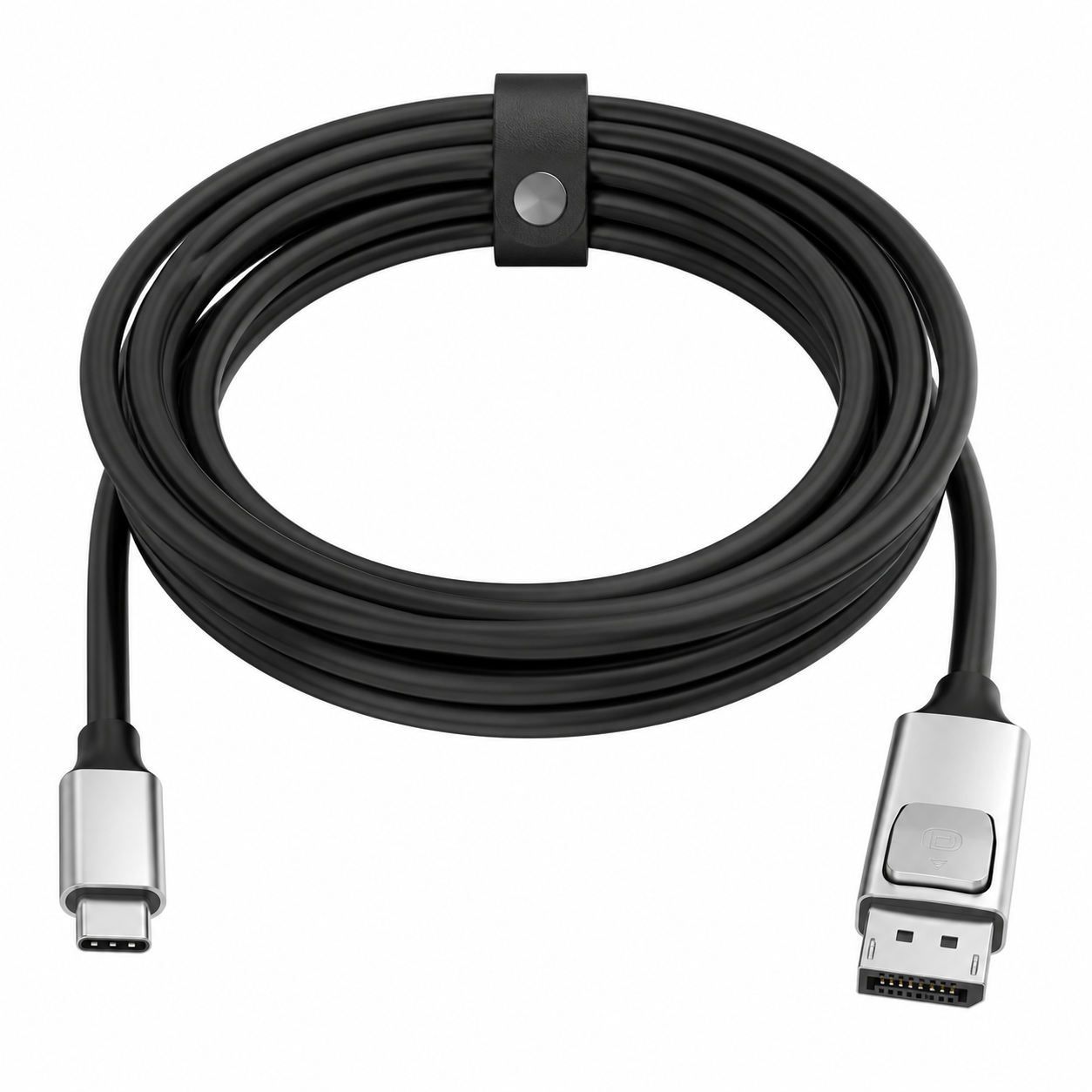

• Slim, lightweight, and highly flexible with a tight bend radius for easy routing in tight spaces

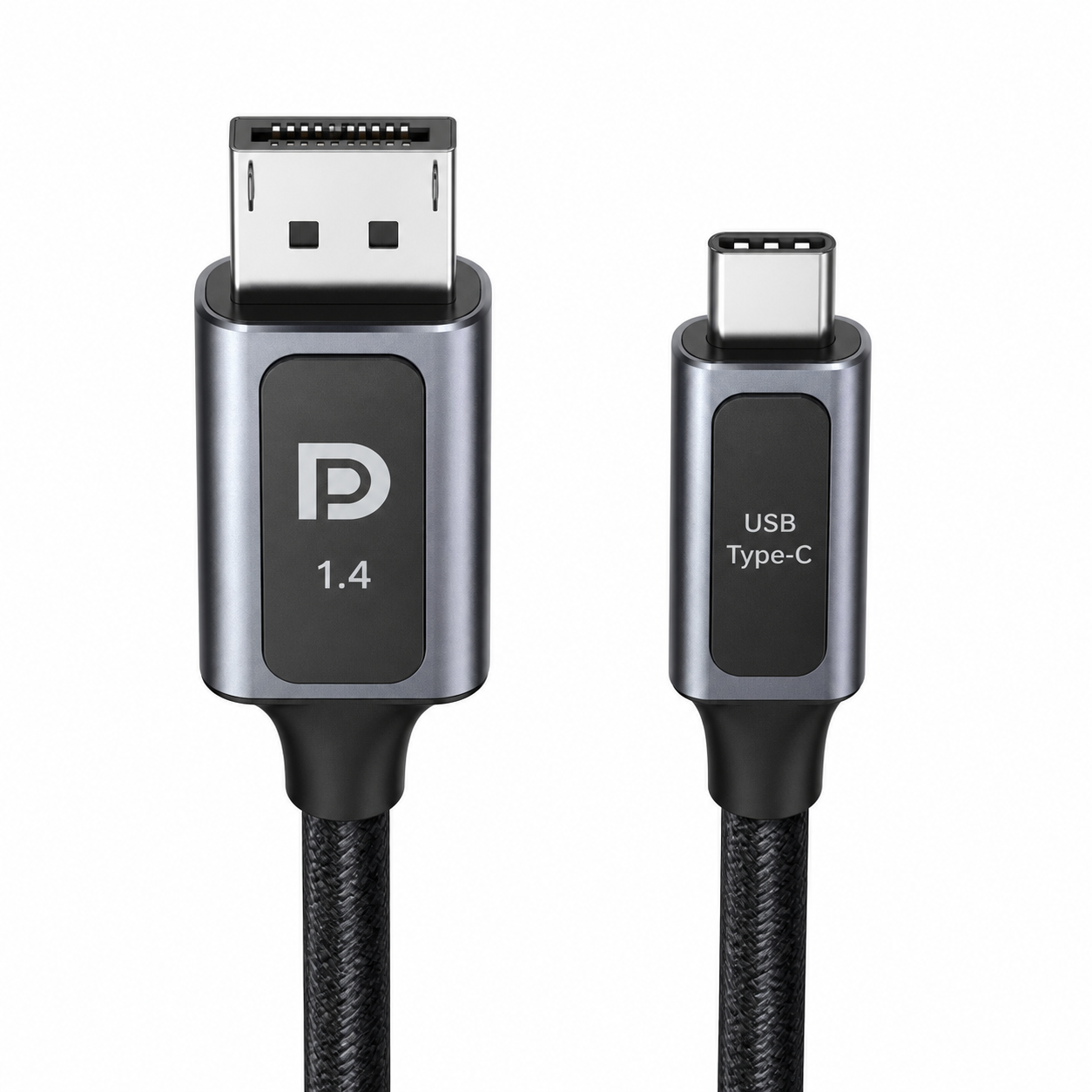

• Zinc alloy connectors and latching design for durability and to prevent accidental disconnection
• Fully plug-and-play — no drivers or software needed

Compatibility

• Supports USB-C DisplayPort Alternate Mode and is backward compatible with DisplayPort 1.2 devices
• Works with laptops (MacBook, Dell XPS 15), tablets (iPad Pro), phones, monitors, projectors, TVs, and more

Customization

• Up to 20m maximum length; custom lengths, logos, and packaging available on request

Applications

• Video conferencing: Compatible with Logitech Rally Bar/Camera/Tap, Yealink MeetingBar A20/A30/A50, Poly Studio X, Bose Videobar VB1, Crestron Videobar 70
• Professional AV & Digital Signage: Media players, control systems, interactive displays, LED video walls
• Medical imaging & healthcare: Ultrasound systems, medical cameras, diagnostic workstations
• Industrial & machine vision: Factory automation, AI vision inspection, robotics
• Broadcasting & live streaming: 4K capture devices, PTZ cameras, streaming workstations
• VR/AR & gaming: Long-distance high-speed connections for VR headsets
• Other uses: USB-C docks, SSD enclosures, NAS, home theater, security monitoring, conference rooms, educational settings, mass transit

Key Takeaway:

This AOC is ideal for environments requiring long-distance, uncompromised Ultra HD transmission without on-site power or cabling clutter, delivering exceptional reliability and picture/audio quality in electromagnetically complex settings.
