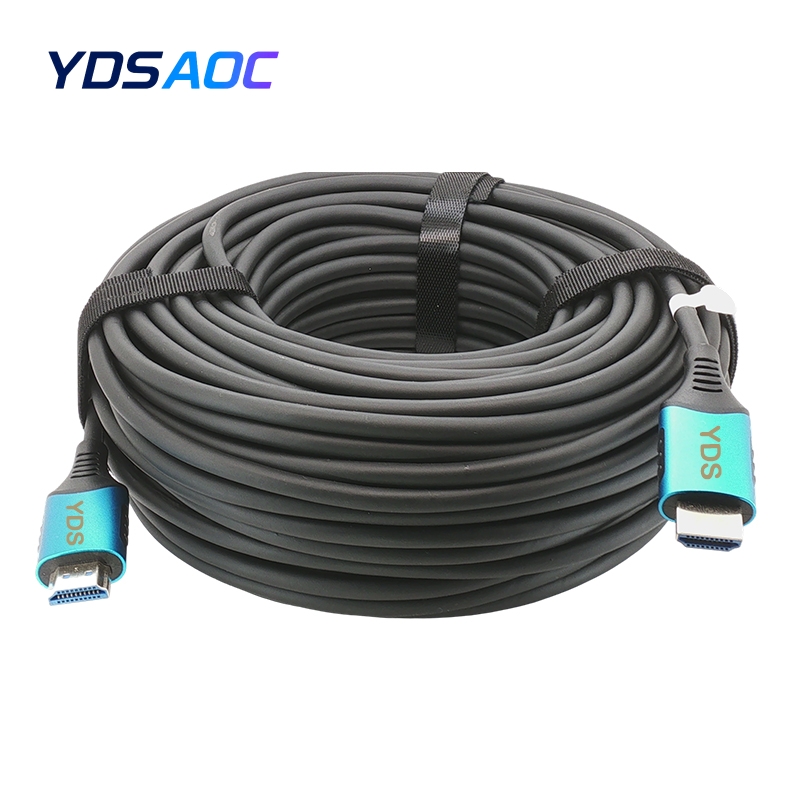

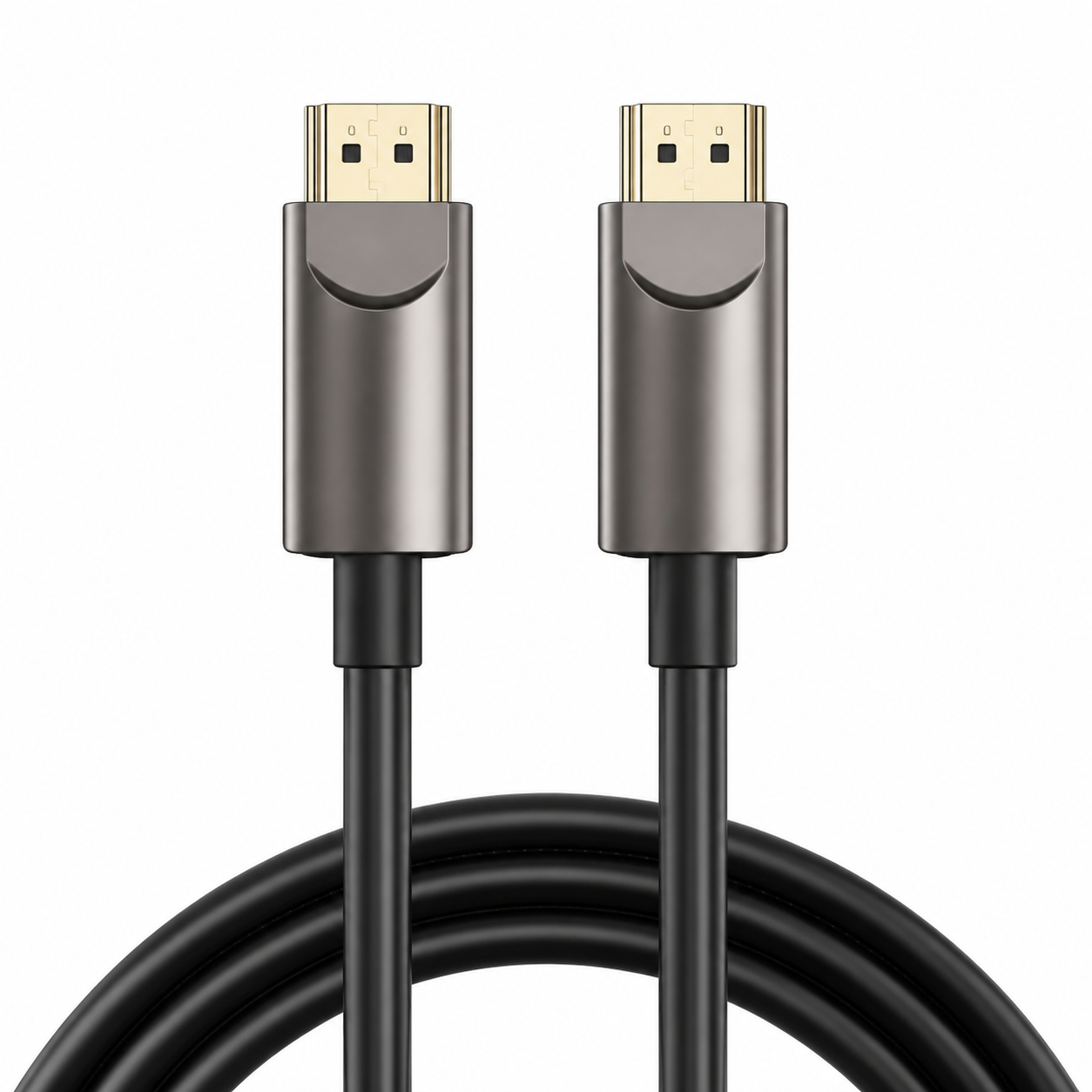

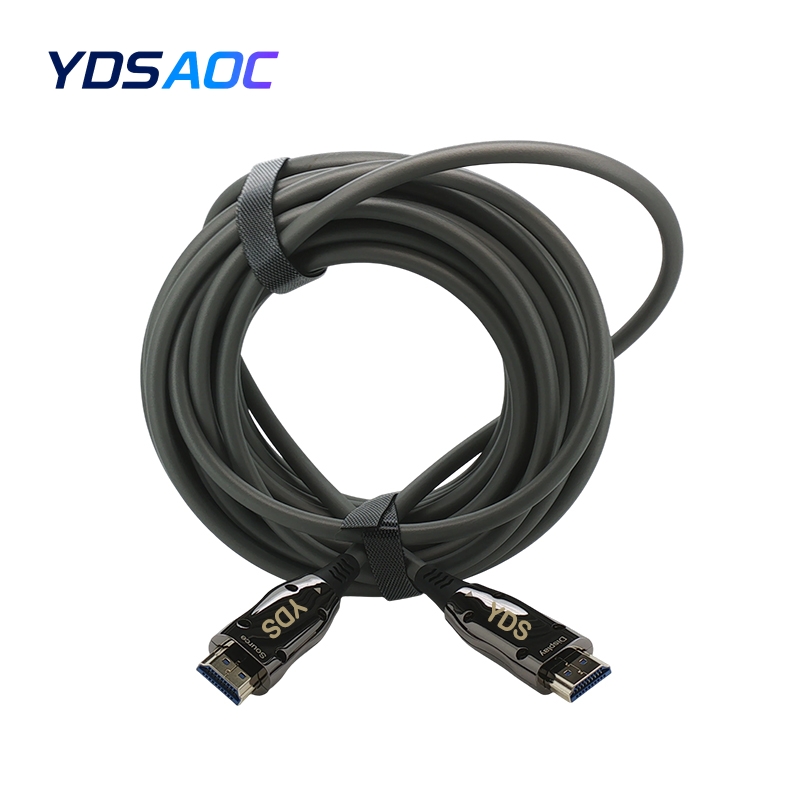

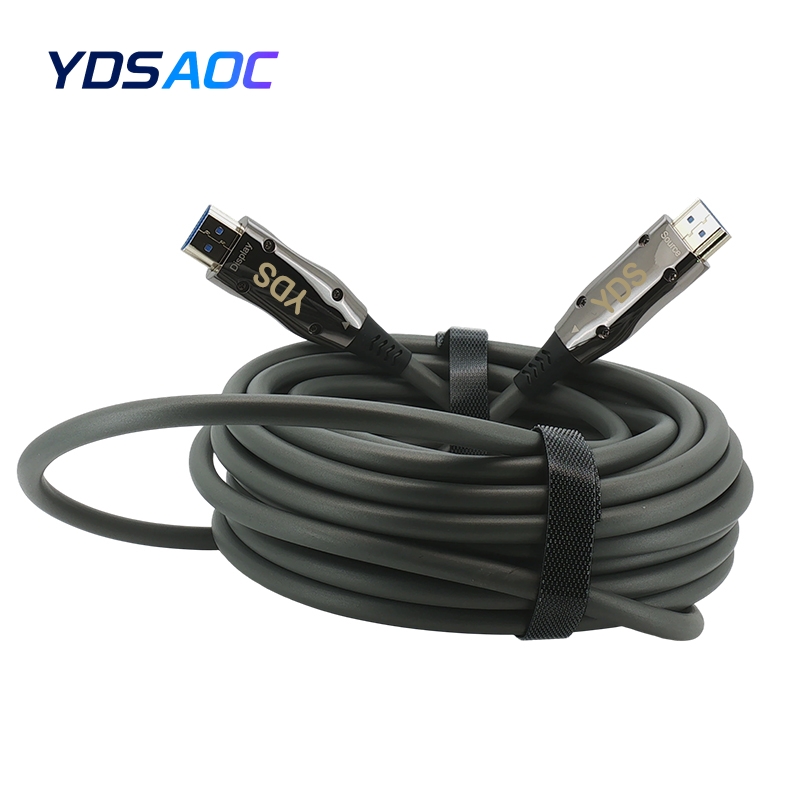

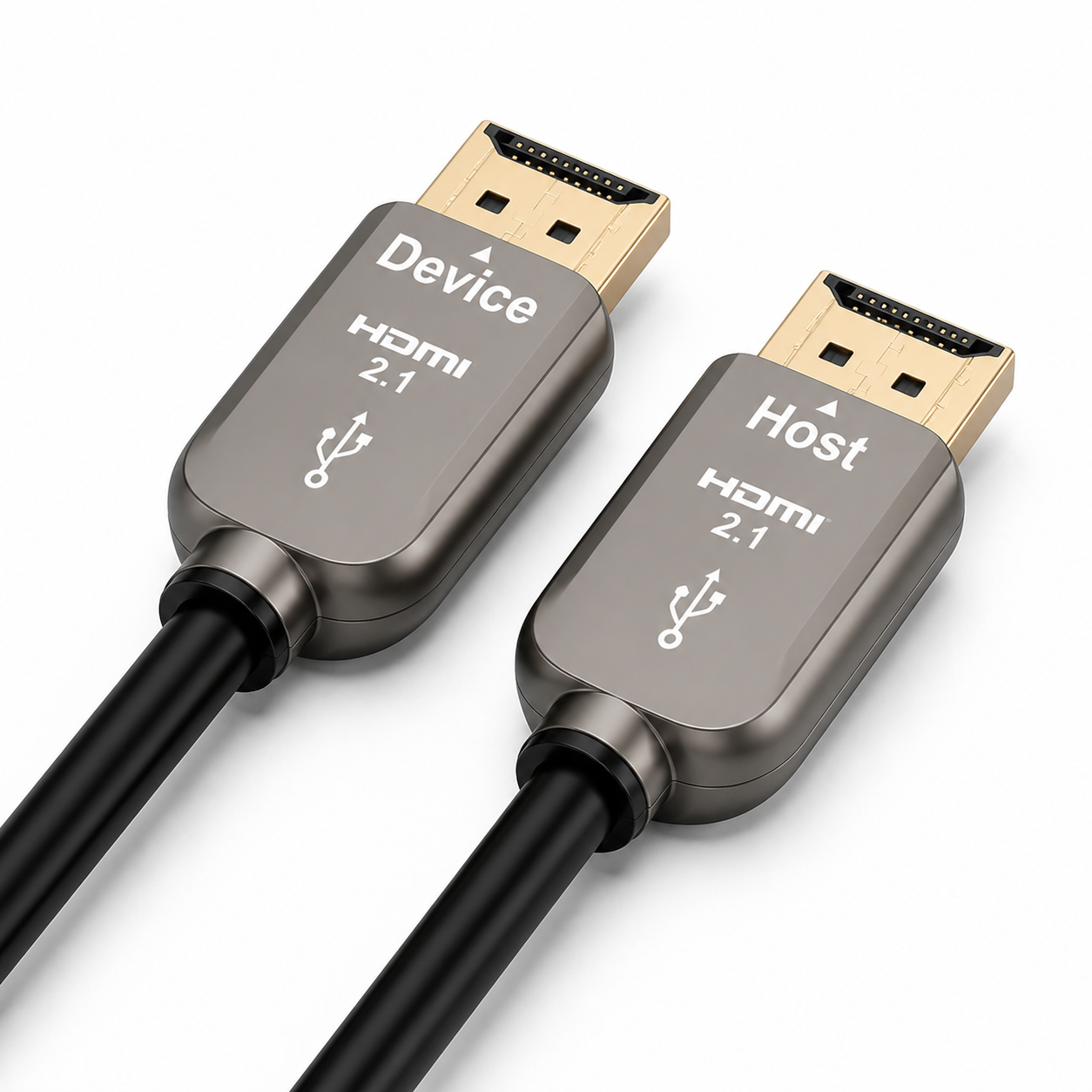

HDMI to HDMI Active Optical Fiber Cable
HDMI 2.1 AM to AM
Micro HDMI 2.1 DM to DM

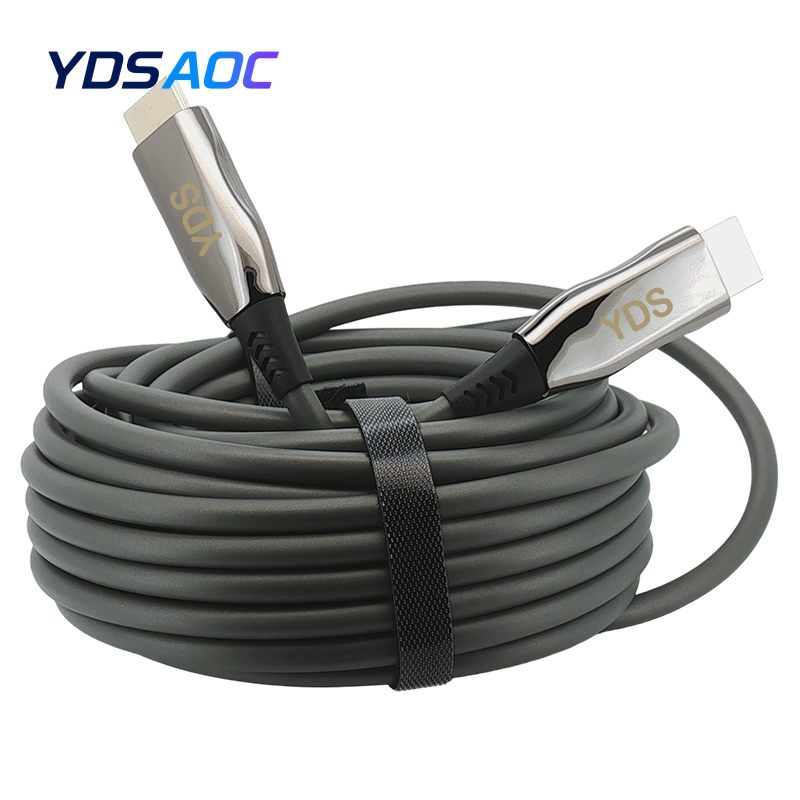

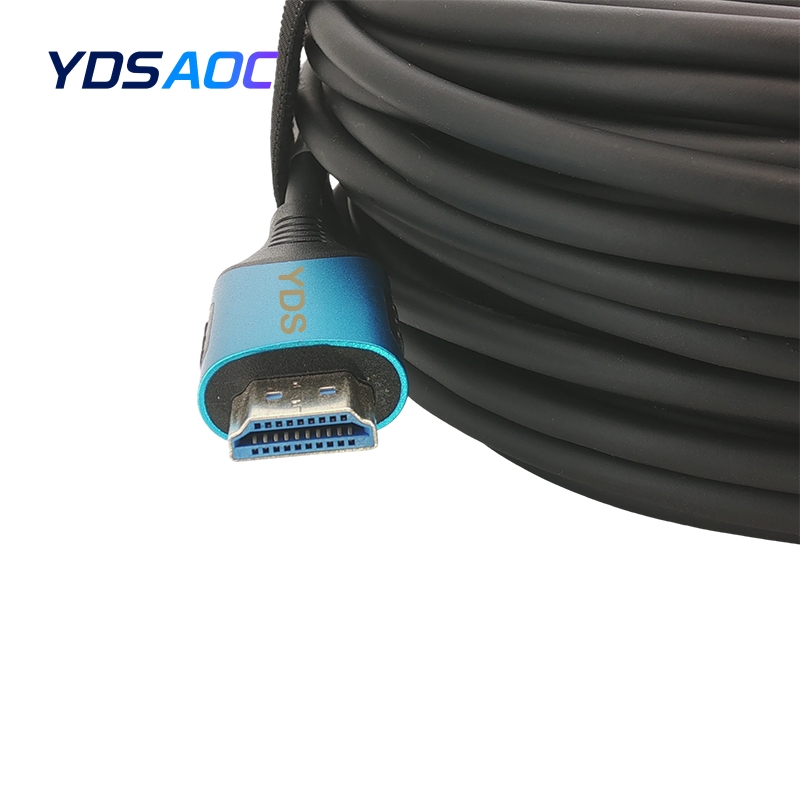

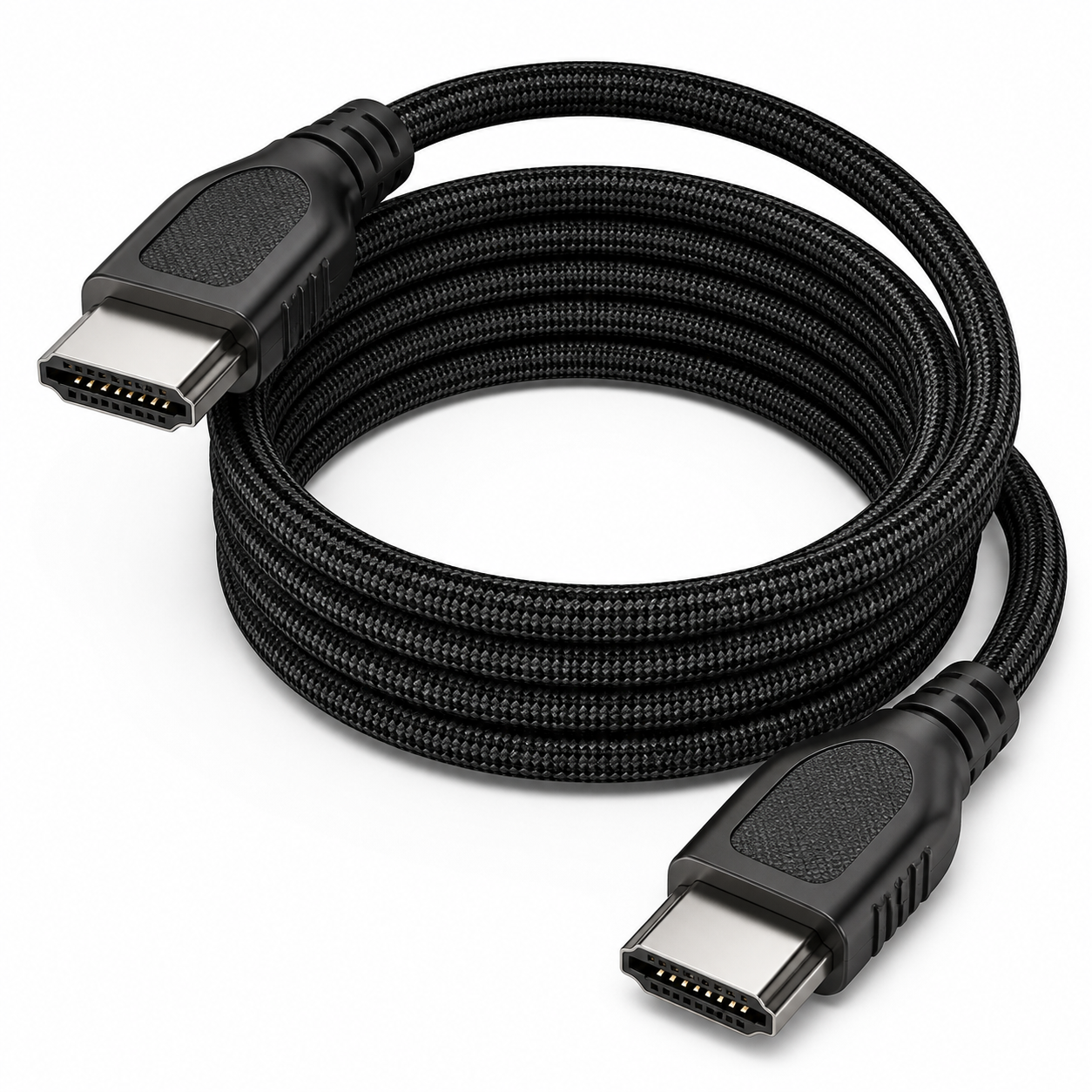

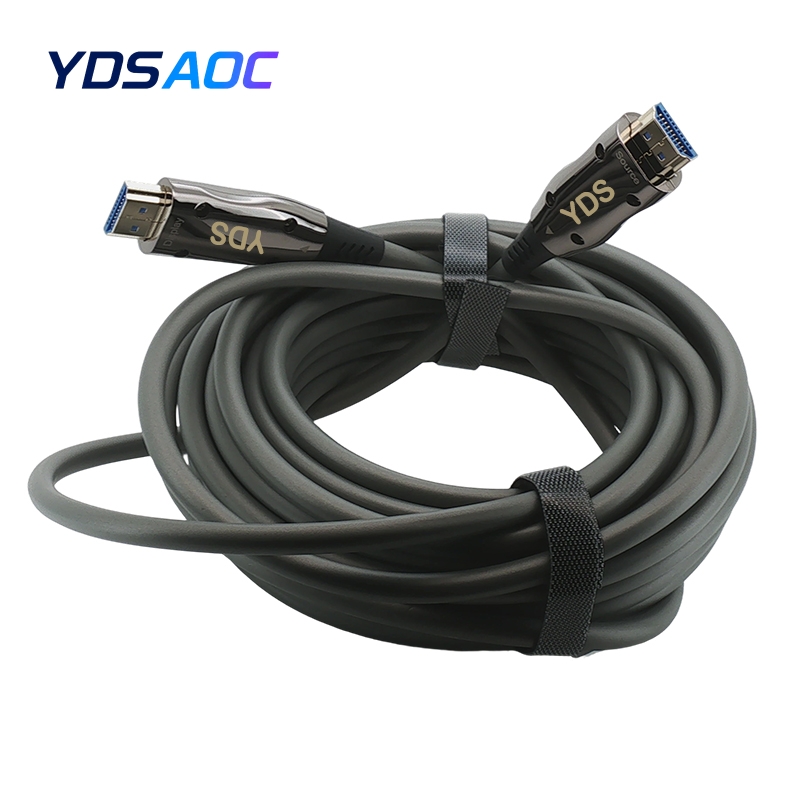

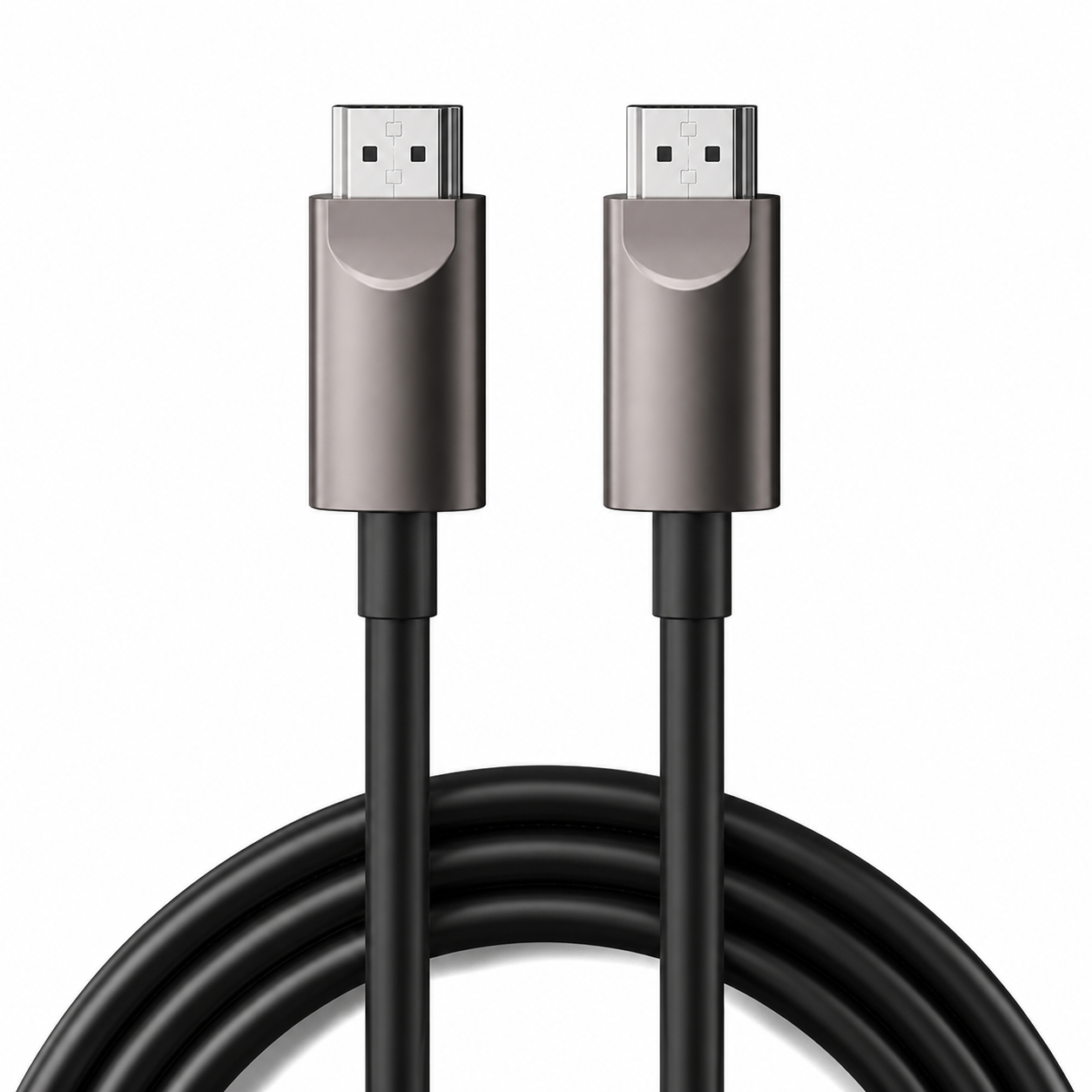

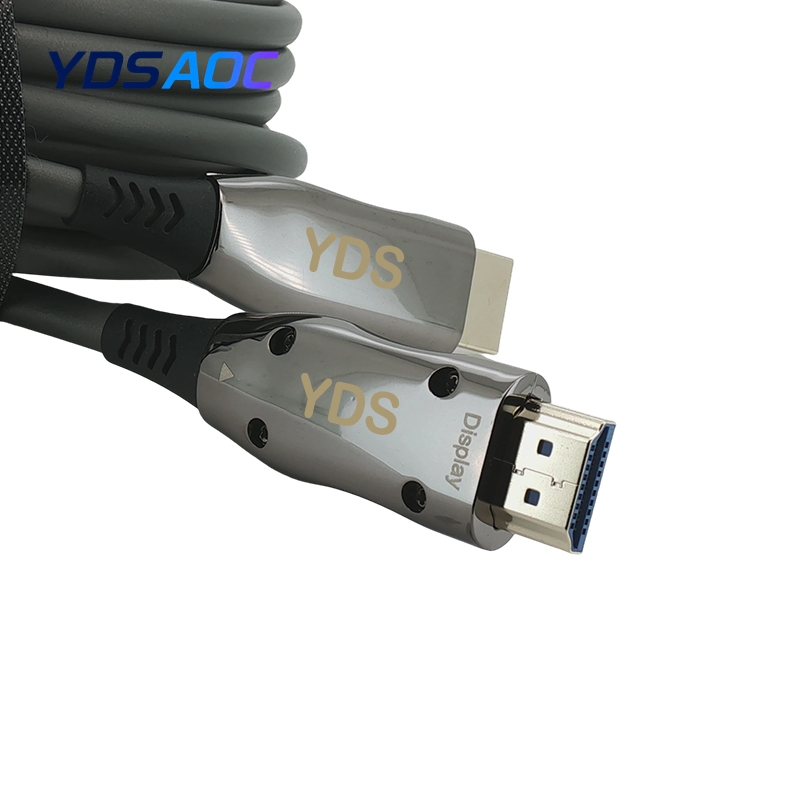

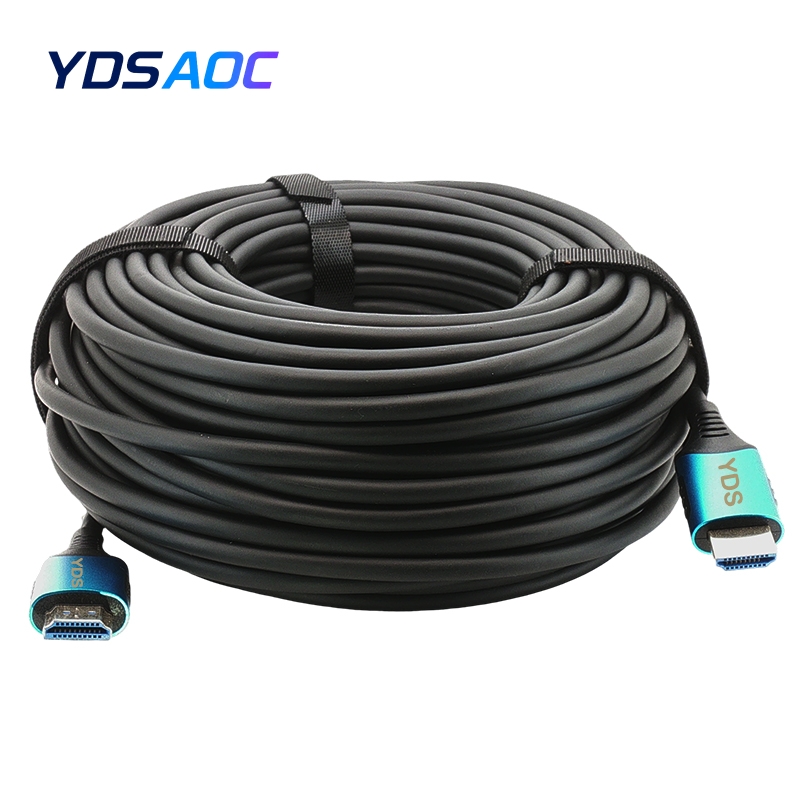

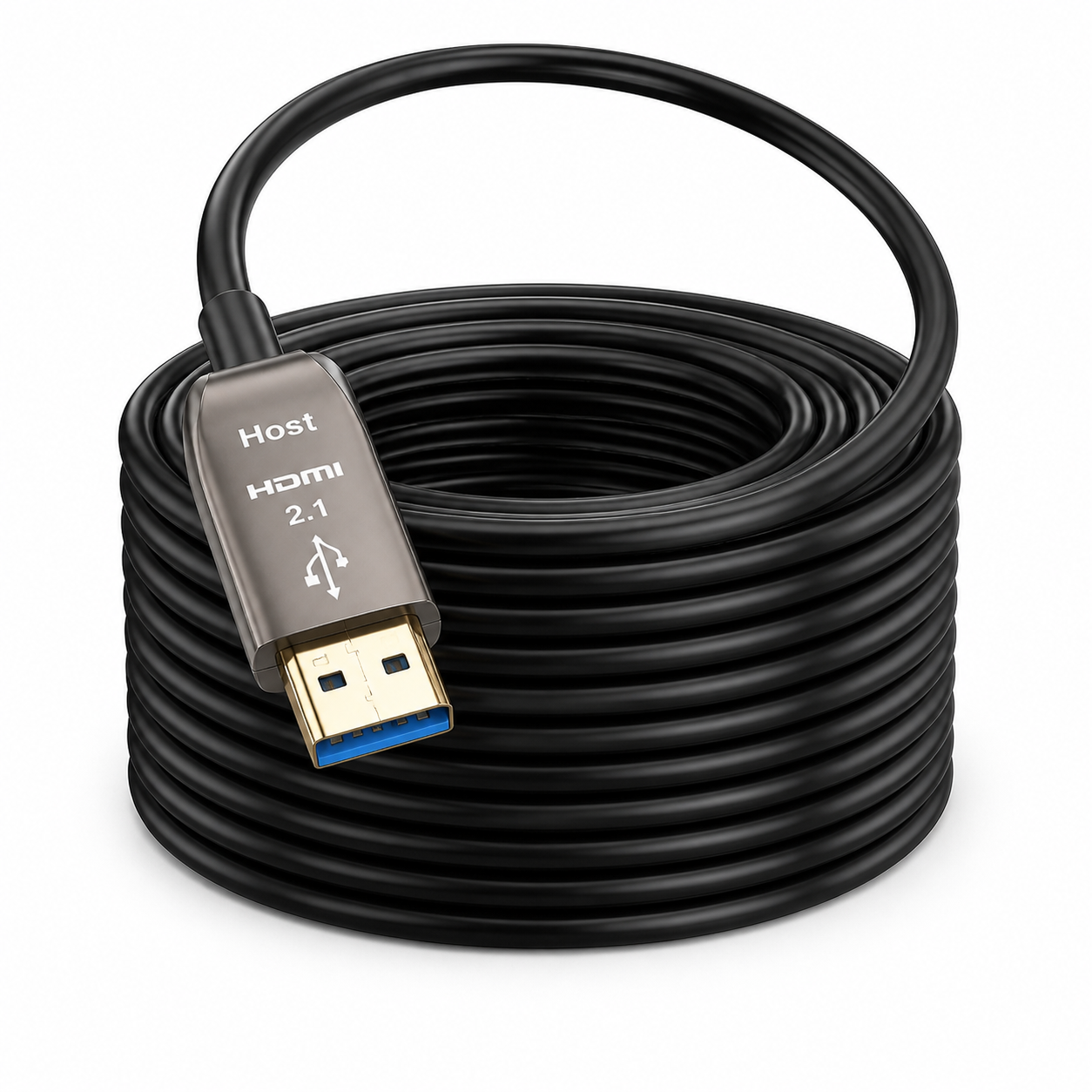

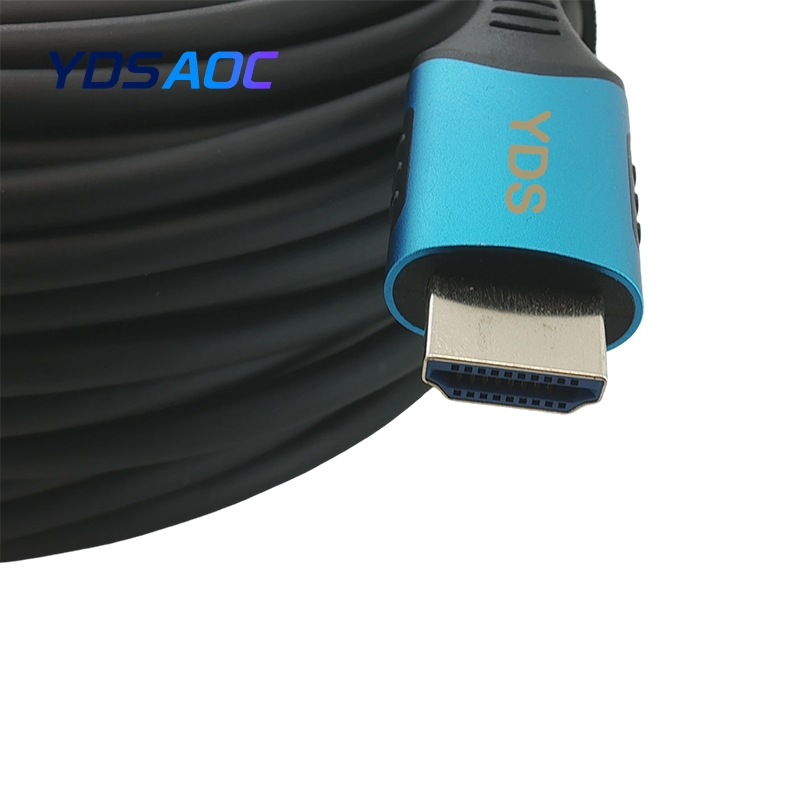

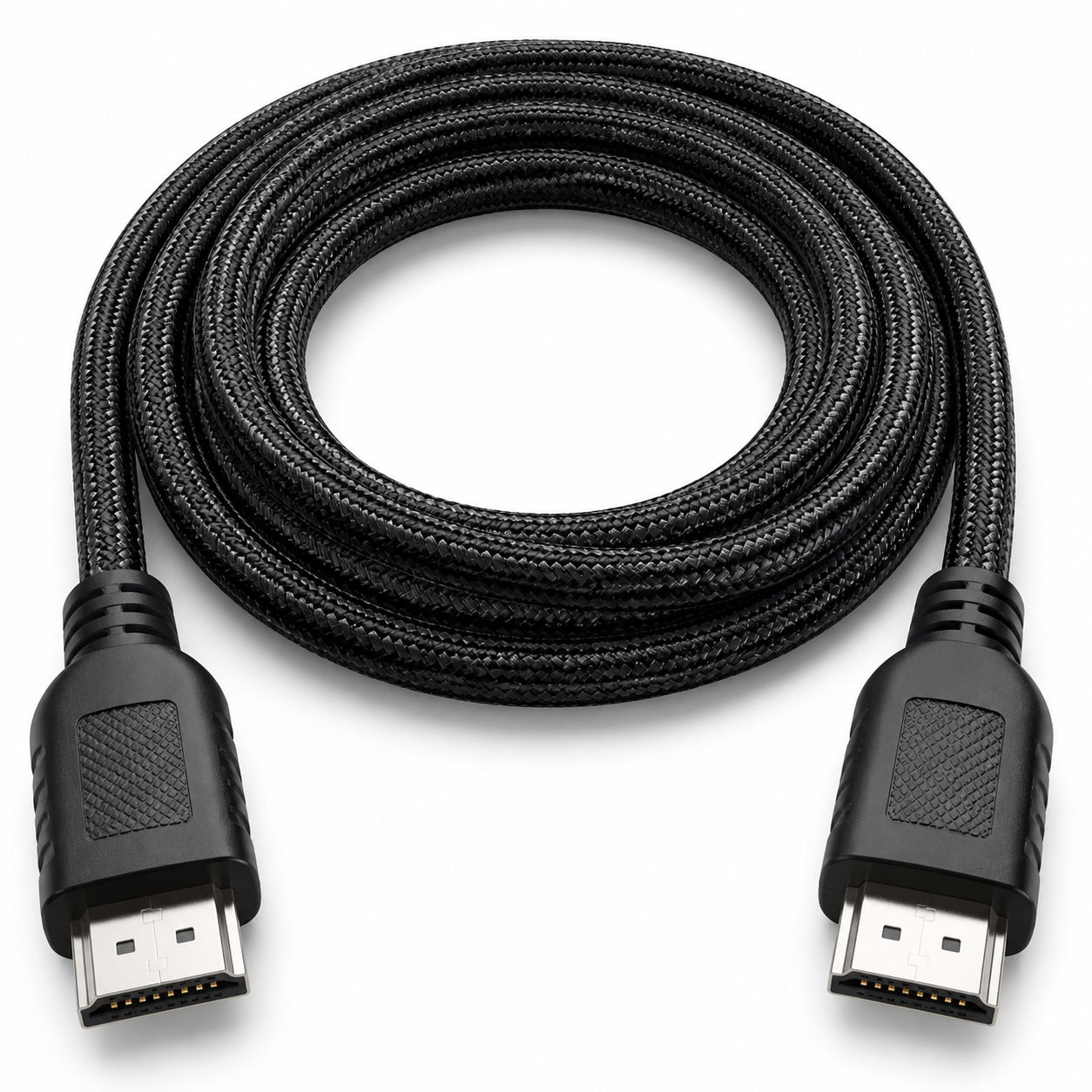

48Gbps Active Optical HDMI 2.1 Cable





Model:  YDSAOC-48G-HDMI-AM-AM



Overview

YDSAOC-48G-HDMI-AM-AM is a high-performance, active optical cable (AOC) engineered to deliver ultra-high-definition audio and video transmission over extended distances. It is designed to connect HDMI source devices—such as MacBooks, iPad Pros, Dell XPS laptops, and HDMI-enabled mobile phones—directly to HDMI monitors, projectors, or TVs with no driver installation required.



Key Specifications

  • Resolution Support: Up to 8K (7680 × 4320p) at 60Hz and 4K at 120Hz, with additional modes including 8K 30Hz, 4K 60/30Hz, and 1080p/i/720p
  • Maximum Length: Up to 200m (600ft) for extended installations (with shorter custom options available)
  • Bandwidth: High data rate of 48Gbps (HDMI 2.1 spec)
  • Compatibility: Backward compatible with HDMI 2.1, 2.0, and 1.4 standards

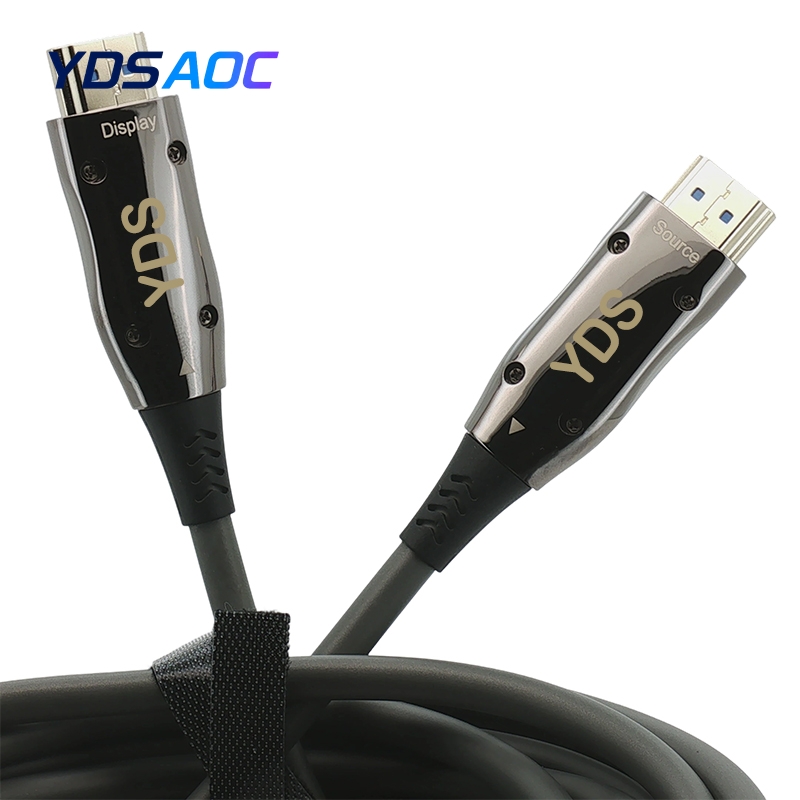

  • Connection Type: HDMI (AM) to HDMI (AM), with a reversible connector that attaches in either direction



Design & Construction

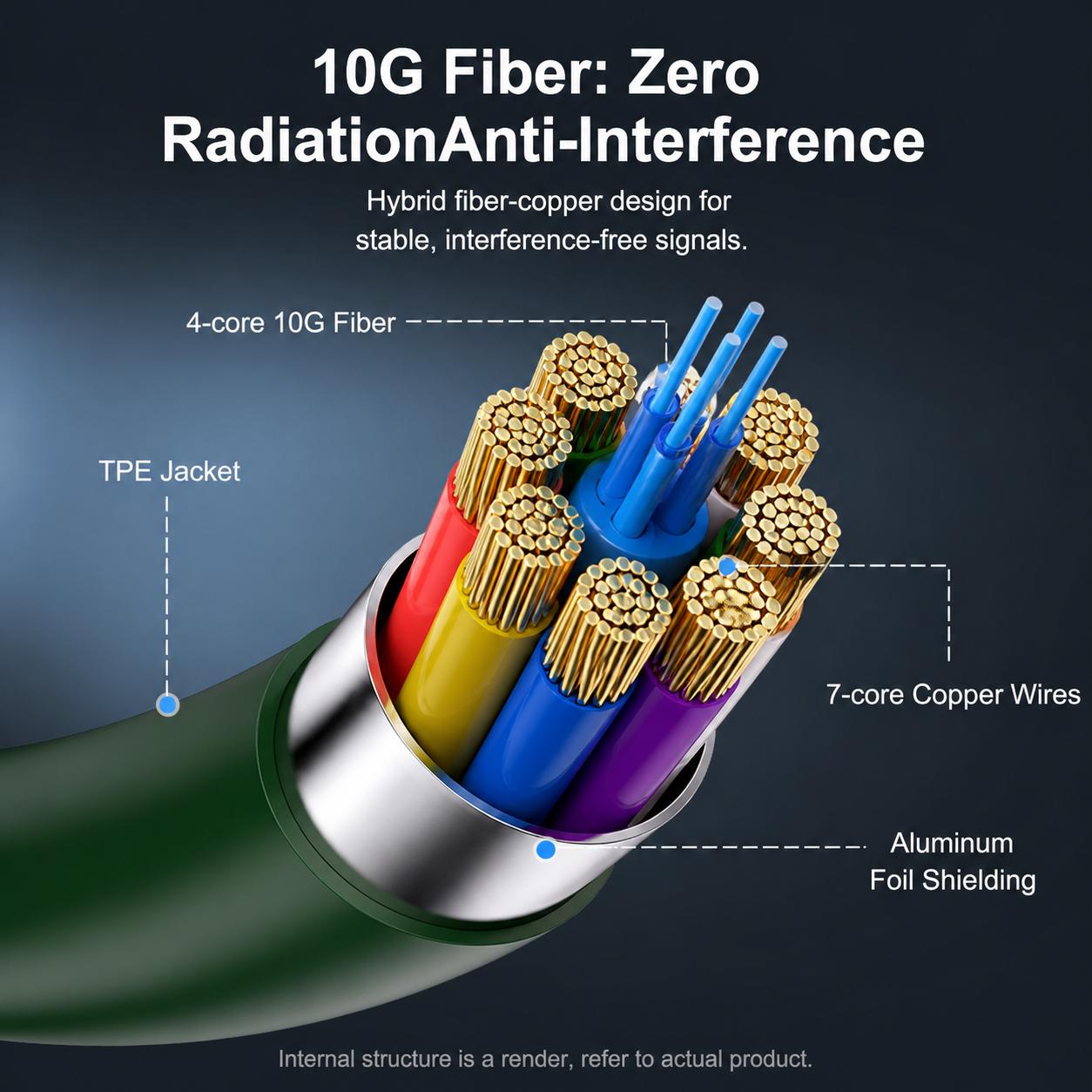

  • Hybrid Fiber/Copper Design: Combines 4 optical fibers and 7 copper wires for lossless, low-attenuation transmission

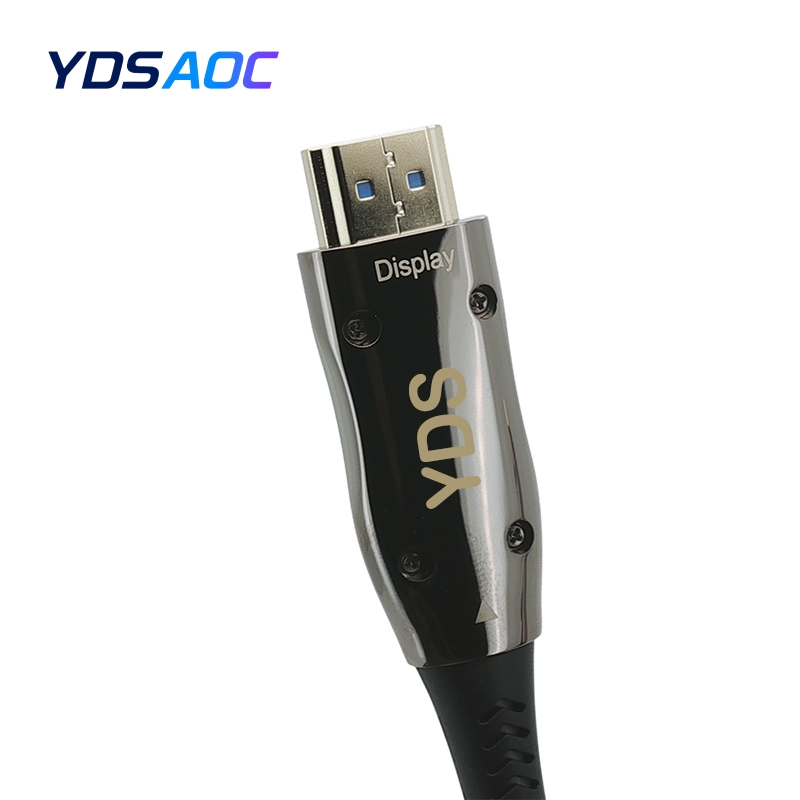

  • Robust Build: Zinc-alloy housing and corrosion-resistant gold-plated connectors for durability
  • No External Power Required: Plug-and-play operation with ultra-low power consumption
  • Interference Resistance: Practically zero EMI/RFI profile, ensuring a safe, radiation-free environment
  • Lightweight Construction: Slim design reduces cable clutter and simplifies installation compared to traditional copper cable



Advanced Features

  • High-Quality Audio: Supports up to 192kHz, 24-bit uncompressed 5.1 and 7.1, Dolby lossless formats, and 32-channel audio
  • Enhanced Audio Return Channel (eARC): Simplifies connectivity and audio optimization
  • Dynamic HDR: Optimizes contrast, depth, brightness, and color gamut frame-by-frame (compatible with HLG, HDR-10/+ , Dolby Vision, and others)
  • VRR & Gaming Support: Enables fluid gameplay with minimal lag, judder, and frame tearing
  • Additional Protocols: Supports EDID with self-detection, ALLM, QMS, and QFT
  • Future-Ready: Prepared for HDCP 2.3 content encryption
  • Display Flexibility: Supports mirror mode and extend mode



Applications

The cable is suited to a wide range of consumer and professional environments, including:

  • Home Entertainment: Home theater, Blu-ray, 3D video, projectors, set-top boxes, gaming consoles, and VR/AR headsets
  • Professional AV & Digital Signage: Conference rooms, LED video walls, digital signage, and broadcast stations
  • Medical & Healthcare: Ultrasound systems, diagnostic workstations, and medical imaging equipment
  • Industrial & Machine Vision: Factory automation, AI vision inspection, robotics, and security monitoring systems
  • Broadcasting & Live Streaming: 4K capture devices, PTZ cameras, and production systems
  • Specialized Settings: Airport boarding systems, airplane on-board video, shipboard installations, and military applications



Customization



Length, logo, and packaging can be customized to suit specific project requirements, making the cable a versatile choice for demanding installations that require reliable long-distance HDMI connectivity without on-site power.





YDSAOC Model Number YDSAOC-48G-HDMI-AM-AM
Order Part Numbers YDSAOC-48G-HDMI-AM-AM-1003
YDSAOC-48G-HDMI-AM-AM-50015
YDSAOC-48G-HDMI-AM-AM-100030
YDSAOC-48G-HDMI-AM-AM-5000150
YDSAOC-48G-HDMI-AM-AM-10000300
Length 1m(3ft), 5m(15ft), 10m(30t), 50m(150ft), 100m(300ft)
Maximum Support Length up to 200m(600ft)
Maximum Data Speed up to 48Gbps (12Gbps per channel)
Full Feature AV Functions HPD, HDCP, HDR
Maximum Resolutions 8K 60Hz, 4K 60Hz, 4K 30Hz, 1080p, 1080i, 720p

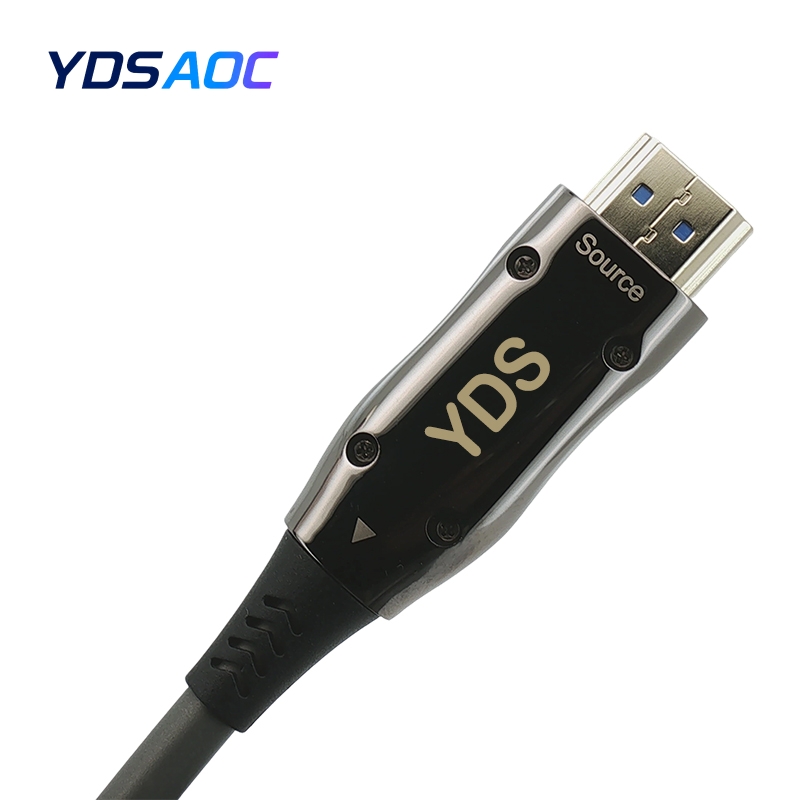

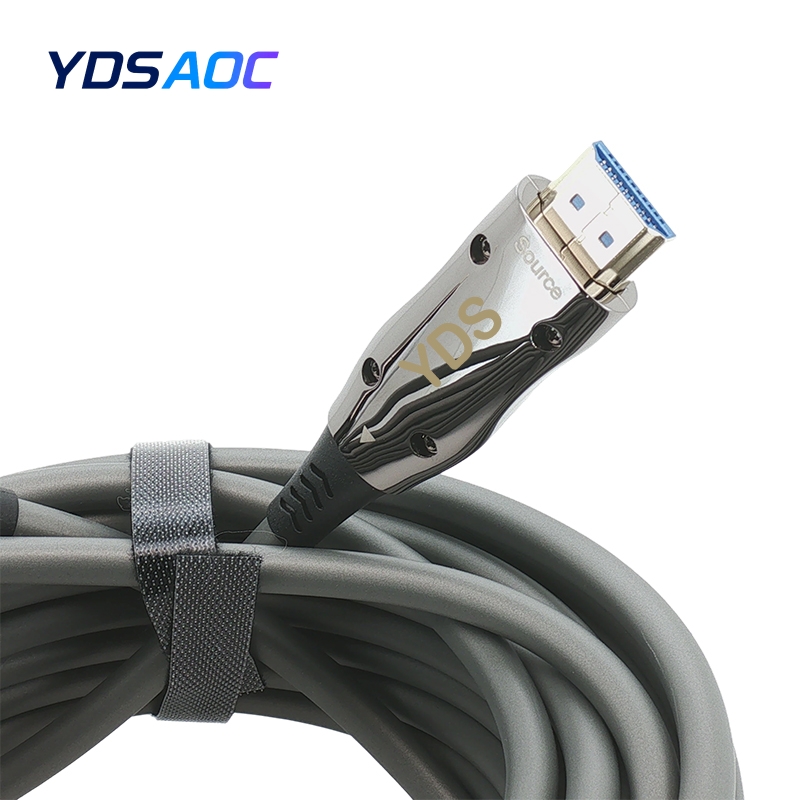

Connector A (Source) HDMI2.1 Type-A Male
Connector B (Display) HDMI2.1 Type-A Male
HDMI Protocols HDMI2.1, HDMI2.0, HDMI1.4
Cable Diameter 4.8mm
Cable Jacket Type PVC
Cable Color Black
AOC Constructions Hybrid, 4x Optical Fiber, 7x Copper Wire
Minimum Bending Radius 50mm
Operating Temperature 0ºC to 70ºC
Storage Temperature –40ºC to 85ºC

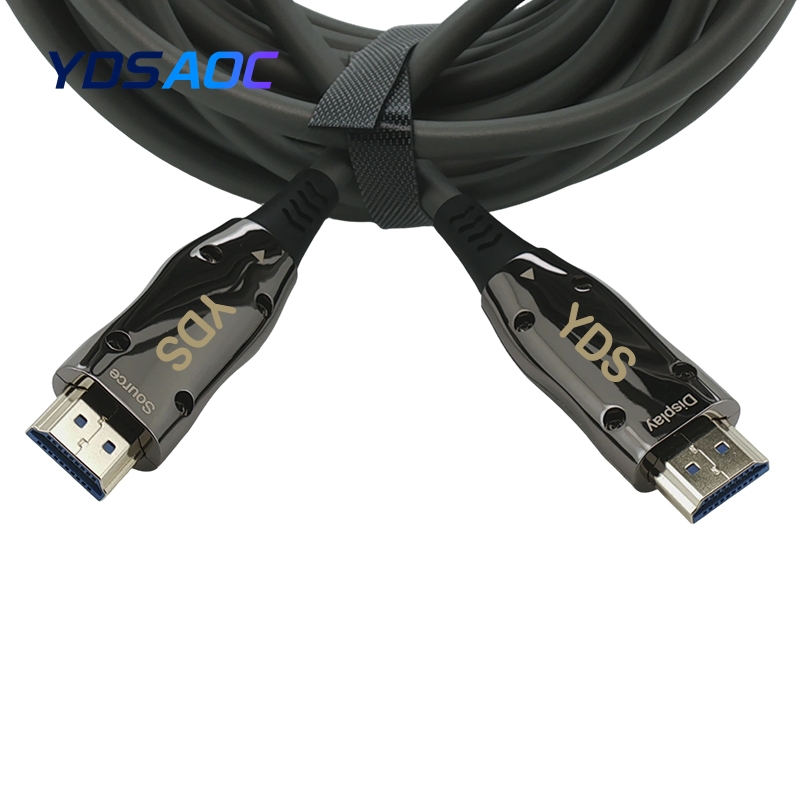

Installation Direction One Way Direction. HDMI (Source) to HDMI (Display)
Power Connect Additional Power Supply Required for Long Distance
OEM/ODM Design Customize on CEC, EDID, eARC within 30m(90ft)
