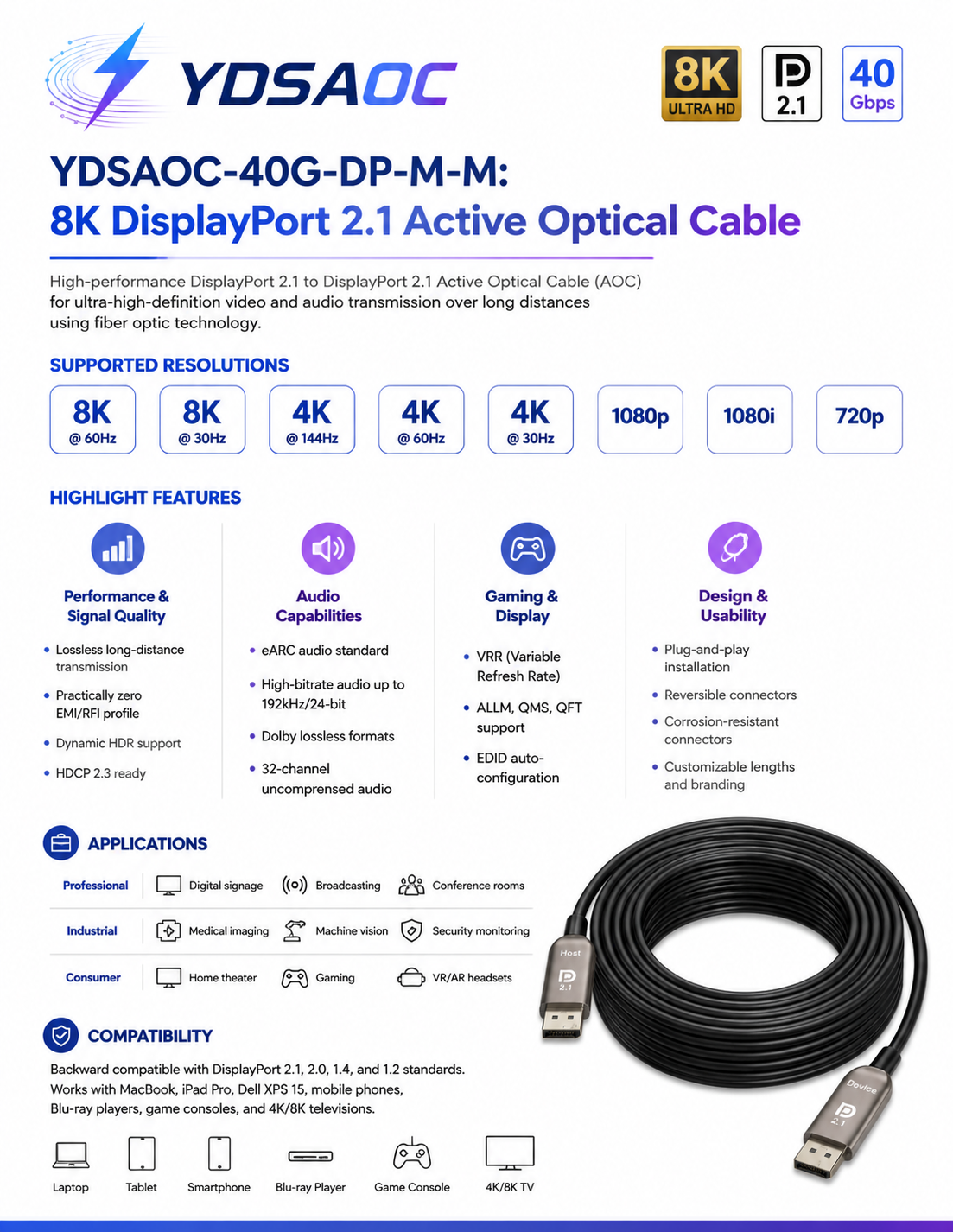

Overview

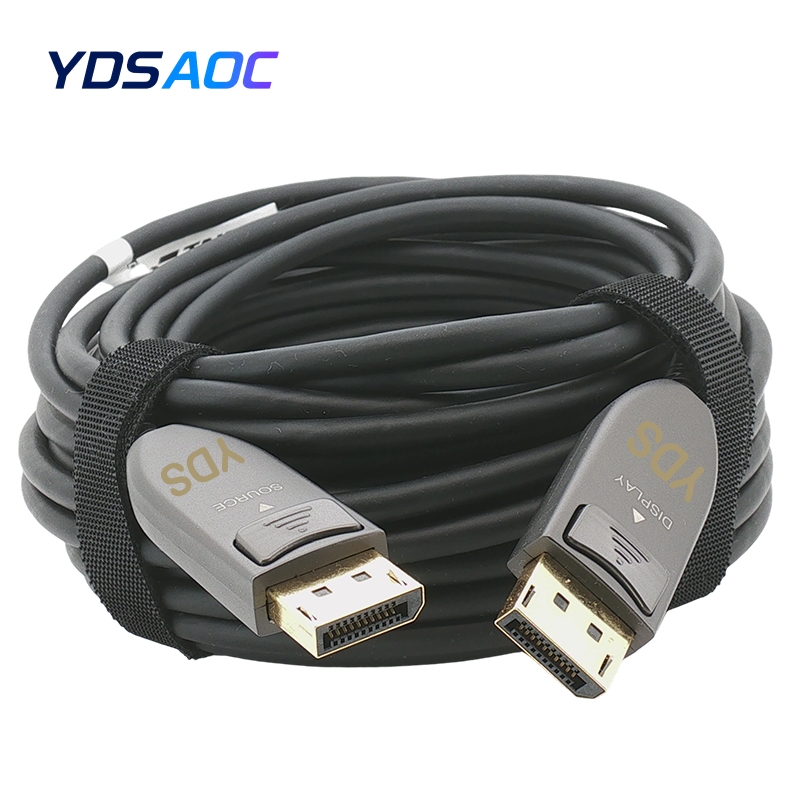

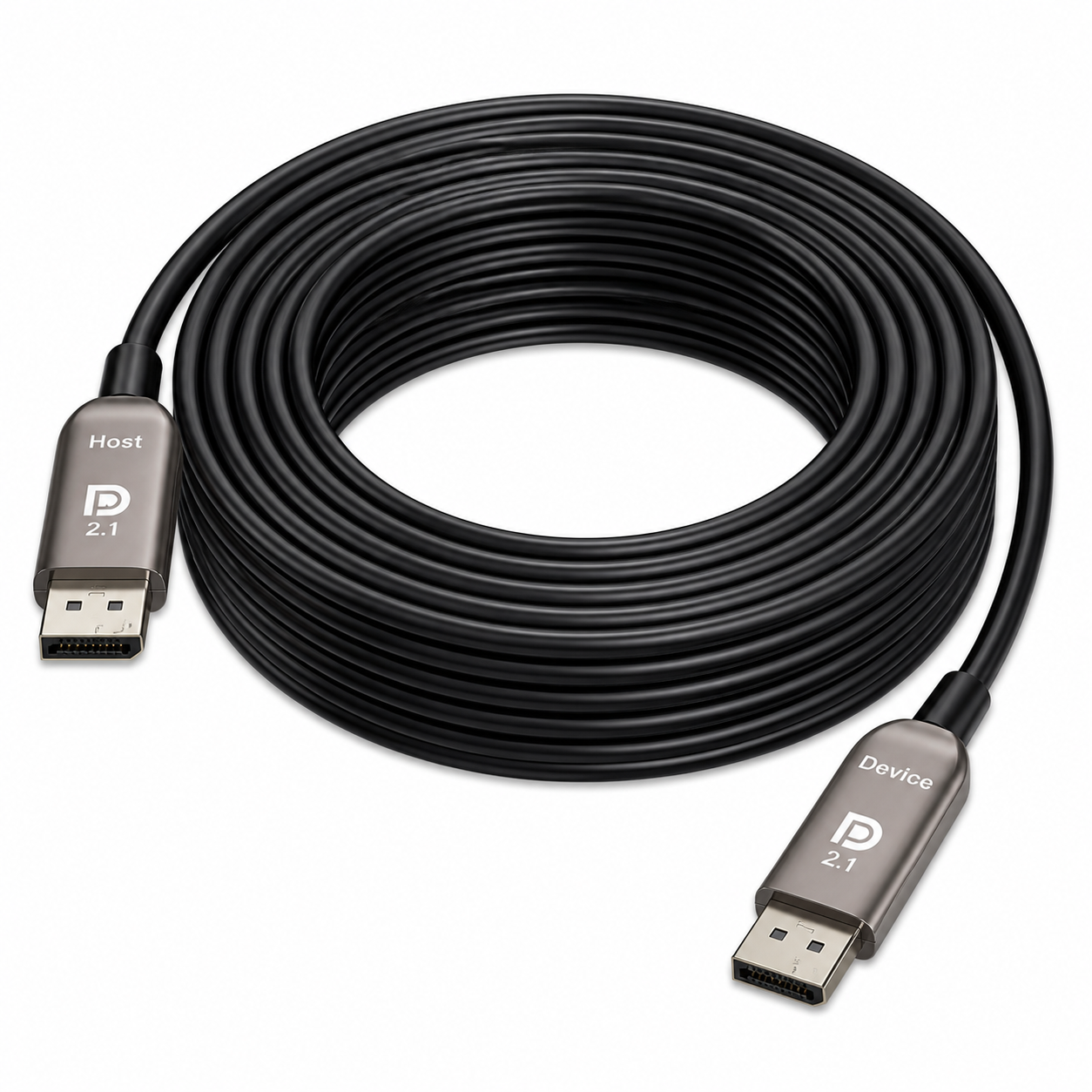

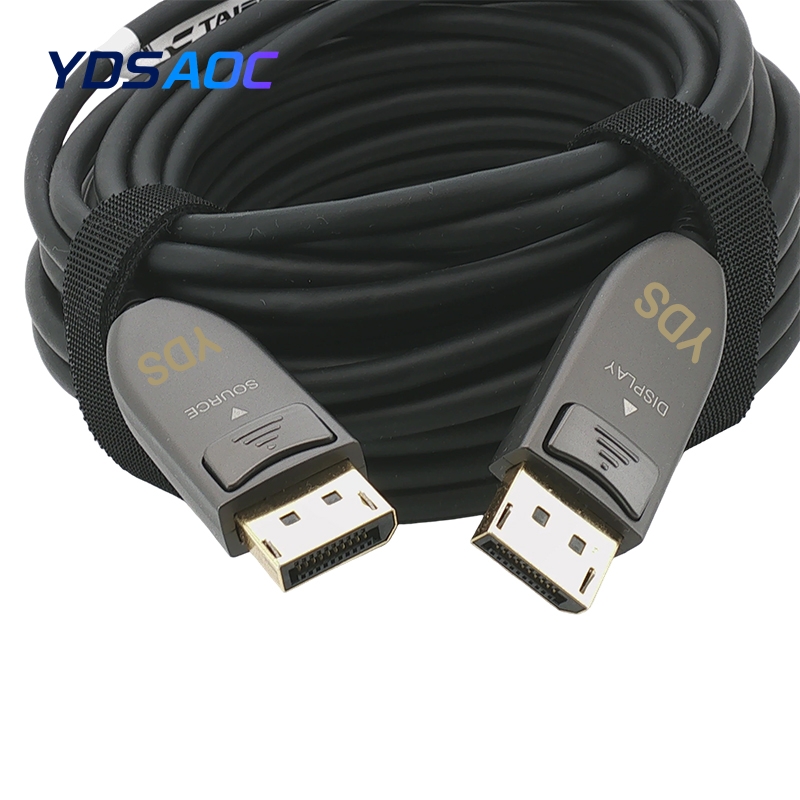

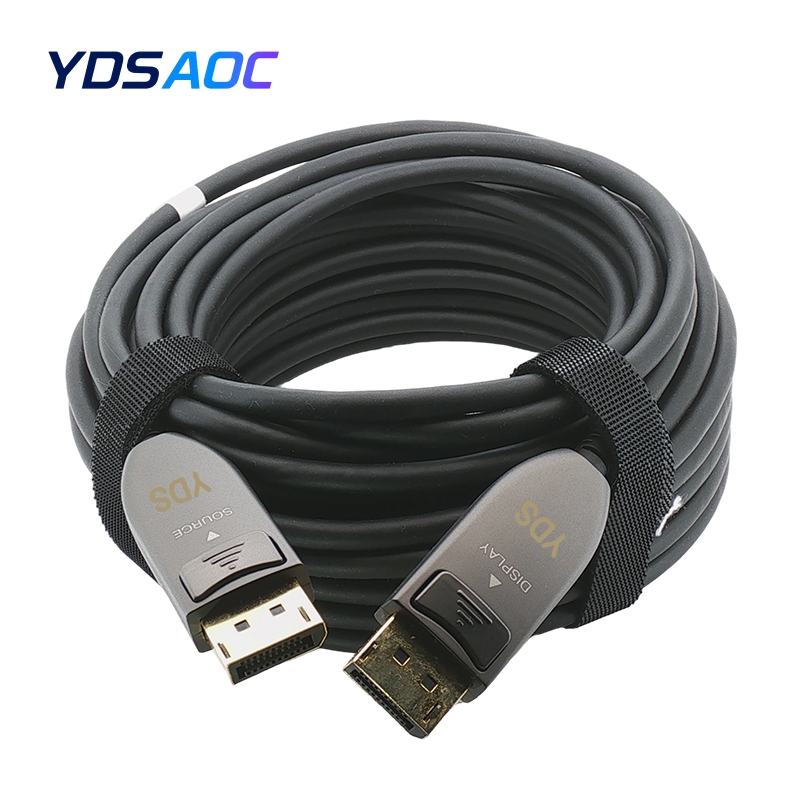

YDSAOC-40G-DP-M-M is a high-performance DisplayPort 2.1 to DisplayPort 2.1 Active Optical Cable (AOC) that transmits ultra-high-definition video and audio signals over long distances using advanced fiber optic technology.



Supported Resolutions

8K @ 60Hz, 8K @ 30Hz, 4K @ 144Hz, 4K @ 60Hz, 4K @ 30Hz, 1080p, 1080i, and 720p.



Highlight Features



Performance & Signal Quality

• Lossless long-distance transmission — delivers uncompressed 8K, VR, and 3D signals without degradation even over long runs
• Practically zero EMI/RFI profile — high resistance to electromagnetic interference for a safe, radiation-free environment; fiber provides extremely low signal attenuation
• Dynamic HDR — optimizes contrast, depth, brightness, and color gamut on a frame-by-frame basis; compatible with HLG, HDR-10, HDR-10+, Dolby Vision, and Perceptual Quantizer standards
• HDCP ready — future-proof design supports HDCP 2.3 content encryption



Audio Capabilities

• Supports eARC (Enhanced Audio Return Channel) audio standard
• High-bitrate audio up to 192kHz / 24-bit
• Uncompressed 5.1 and 7.1 channel audio
• Dolby lossless formats and 32-channel uncompressed audio



Gaming & Display Technologies

• VRR (Variable Refresh Rate) — fluid gameplay with minimal lag, judder, and frame tearing
• ALLM, QMS, and QFT support for improved gaming and display performance
• EDID with self-detecting function for automatic configuration



Design & Usability

• Plug-and-play — no external power supply or driver installation required; ultra-low power consumption (hybrid fiber/copper design)
• Detachable, reversible connectors — attaches in either direction for flexible installation and easy cable management/storage
• Durable construction — corrosion-resistant gold-plated connectors and a strong zinc-alloy housing providing EMI shielding and improved robustness
• Customizable — custom lengths, branding (logo), and packaging available



Compatibility

• Backward compatible with DisplayPort 2.1, 2.0, and 1.4 standards
• Compatible with all DisplayPort 2.1, 1.4, and 1.2 devices
• Works with MacBook, iPad Pro, Dell XPS 15, DisplayPort-enabled mobile phones, Blu-ray players, game consoles, and 4K/8K televisions



Applications



Professional & Commercial:

• Digital signage and LED signboards (streets, stadiums, hospitals, malls)
• Conference rooms and video conferencing equipment
• Broadcasting and live streaming (4K capture devices, PTZ cameras, production systems)
• TV and radio broadcast stations
• Professional AV setups and media players



Industrial & Healthcare:

• Medical imaging equipment and diagnostic workstations
• Machine vision and industrial automation systems
• Security monitoring systems and access control



Consumer & Specialty:

• Home theater and entertainment systems (Blu-ray, 3D video, projectors, set-top boxes, DVR)
• Gaming PCs and gaming consoles
• VR/AR headsets and immersive simulation environments
• Airport boarding video information systems
• Airplane on-board video systems
• DisplayPort docking stations, SSD enclosures, and NAS systems



Best For

Environments requiring extended data transmission distances without on-site power, offering high reliability in electromagnetically complex settings.



Copper cables typically struggle to transmit 4K@60Hz beyond 5 meters and require modular extenders; this fiber optic cable provides a single-cable solution ideal for future-proofing 8K upgrades in demanding scenarios such as medical surgeries, live event rentals, military applications, shipboard installations, and temporary staging.









YDSAOC Model Number	YDSAOC-40G-DP-M-M
Order Part Numbers	YDSAOC-40G-DP-M-M-1003 YDSAOC-40G-DP-M-M-50015 YDSAOC-40G-DP-M-M-100030 YDSAOC-40G-DP-M-M-5000150 YDSAOC-40G-DP-M-M-10000300
Length	1m(3ft), 5m(15ft), 10m(30t), 50m(150ft), 100m(300ft)
Maximum Support Length	up to 200m(600ft)
Maximum Data Speed	up to 40Gbps (10Gbps per channel)
Full Feature AV Functions	HPD, HDCP2.2, HDCP, HDR
Maximum Resolutions	8K 60Hz, 4K 60Hz, 4K 30Hz, 1080p, 1080i, 720p

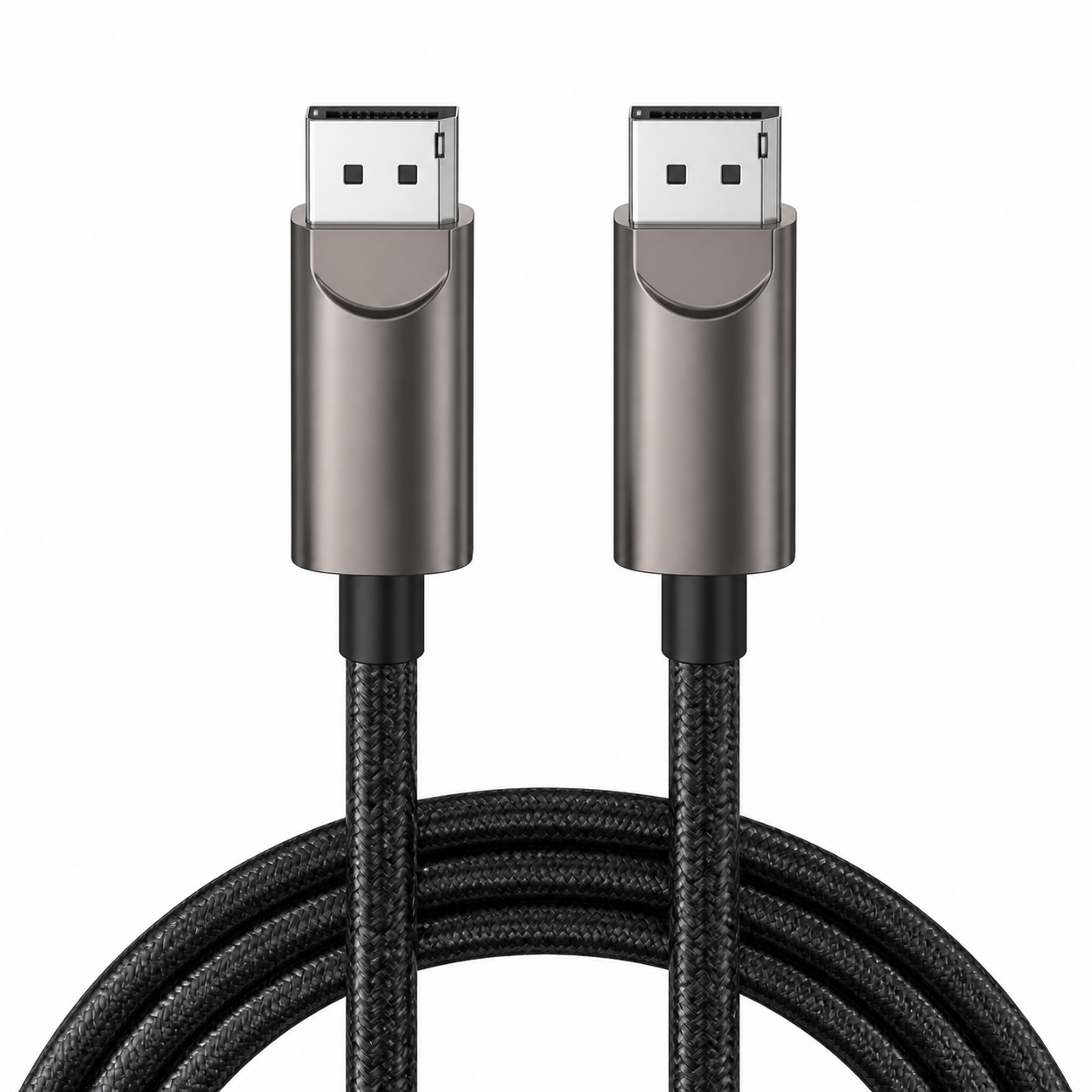

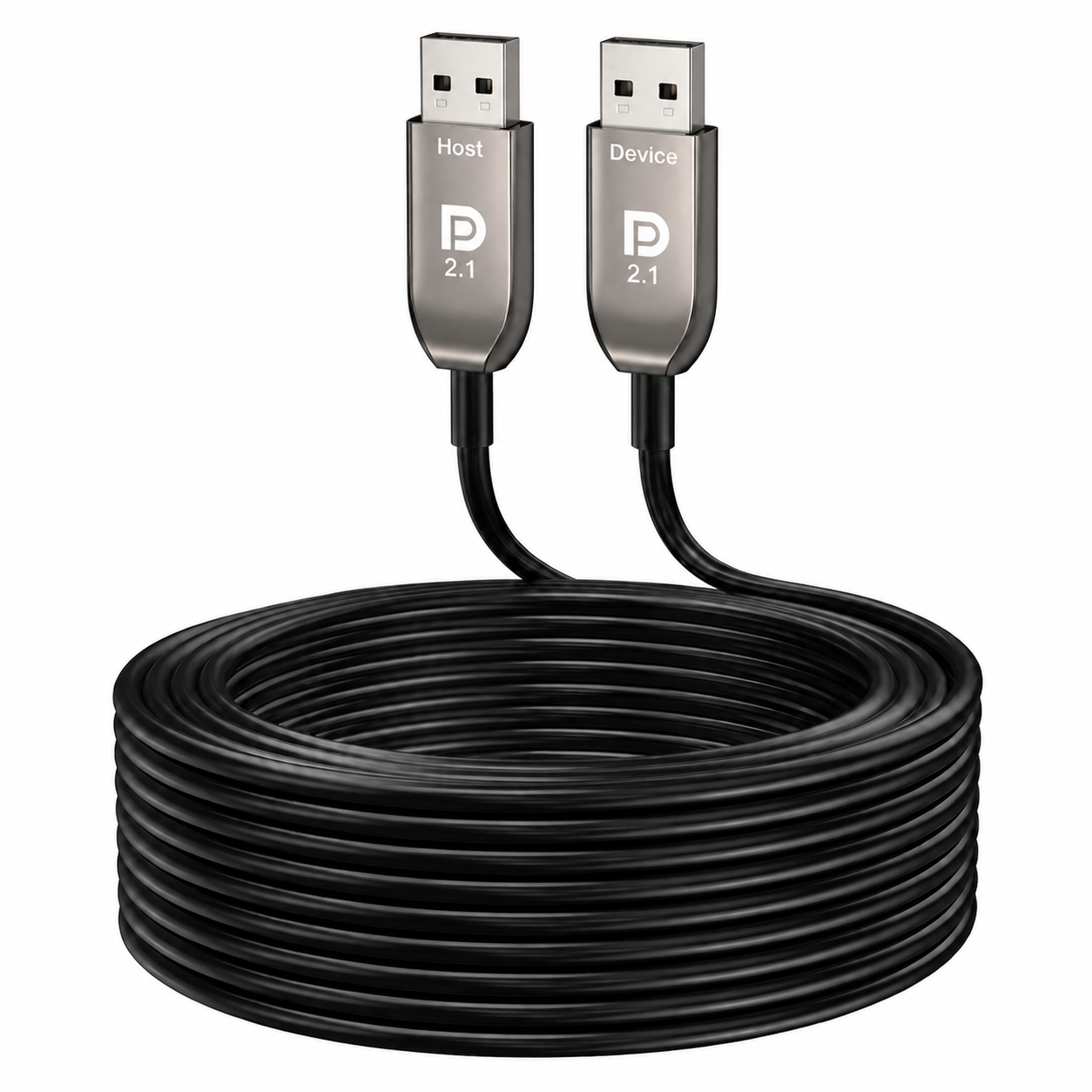

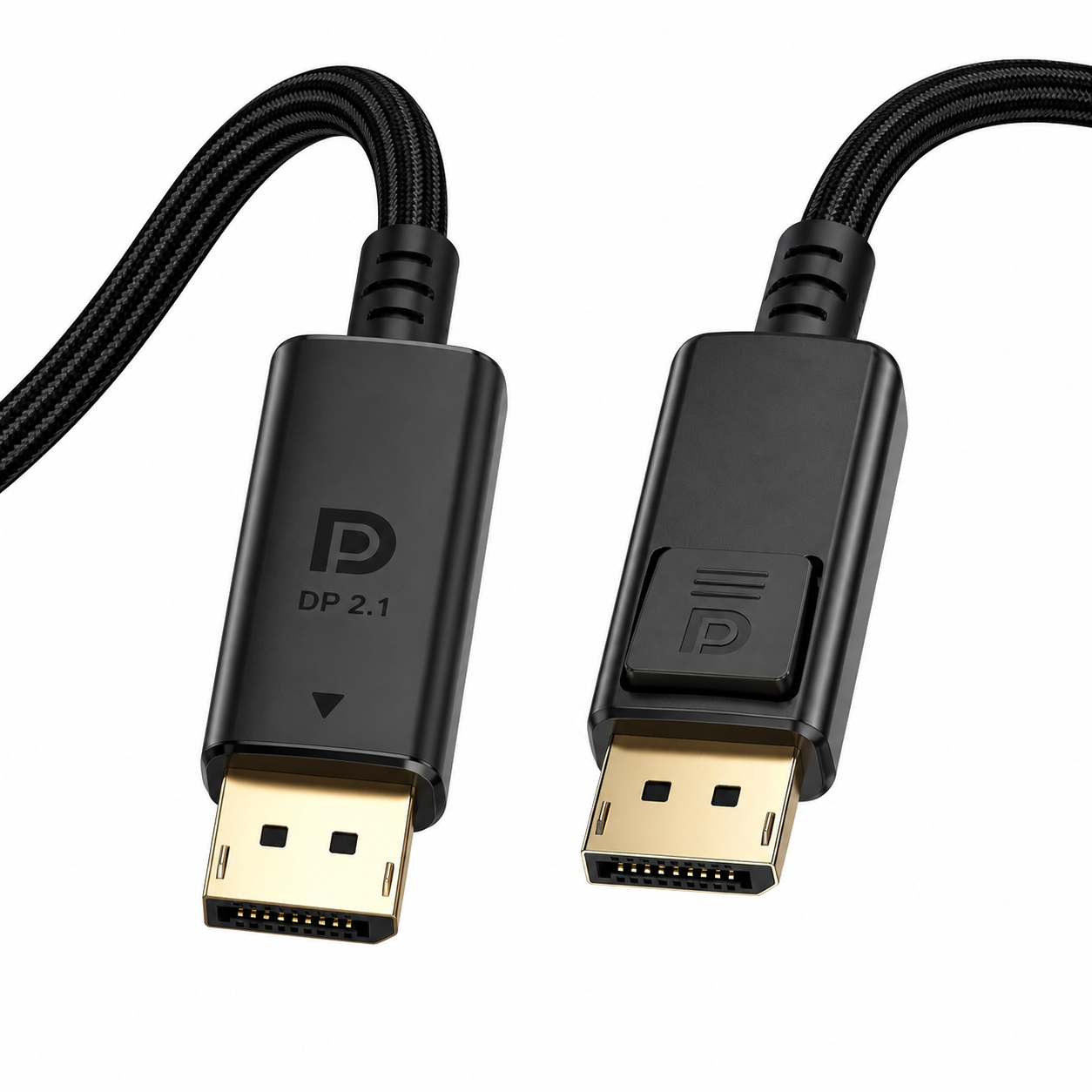

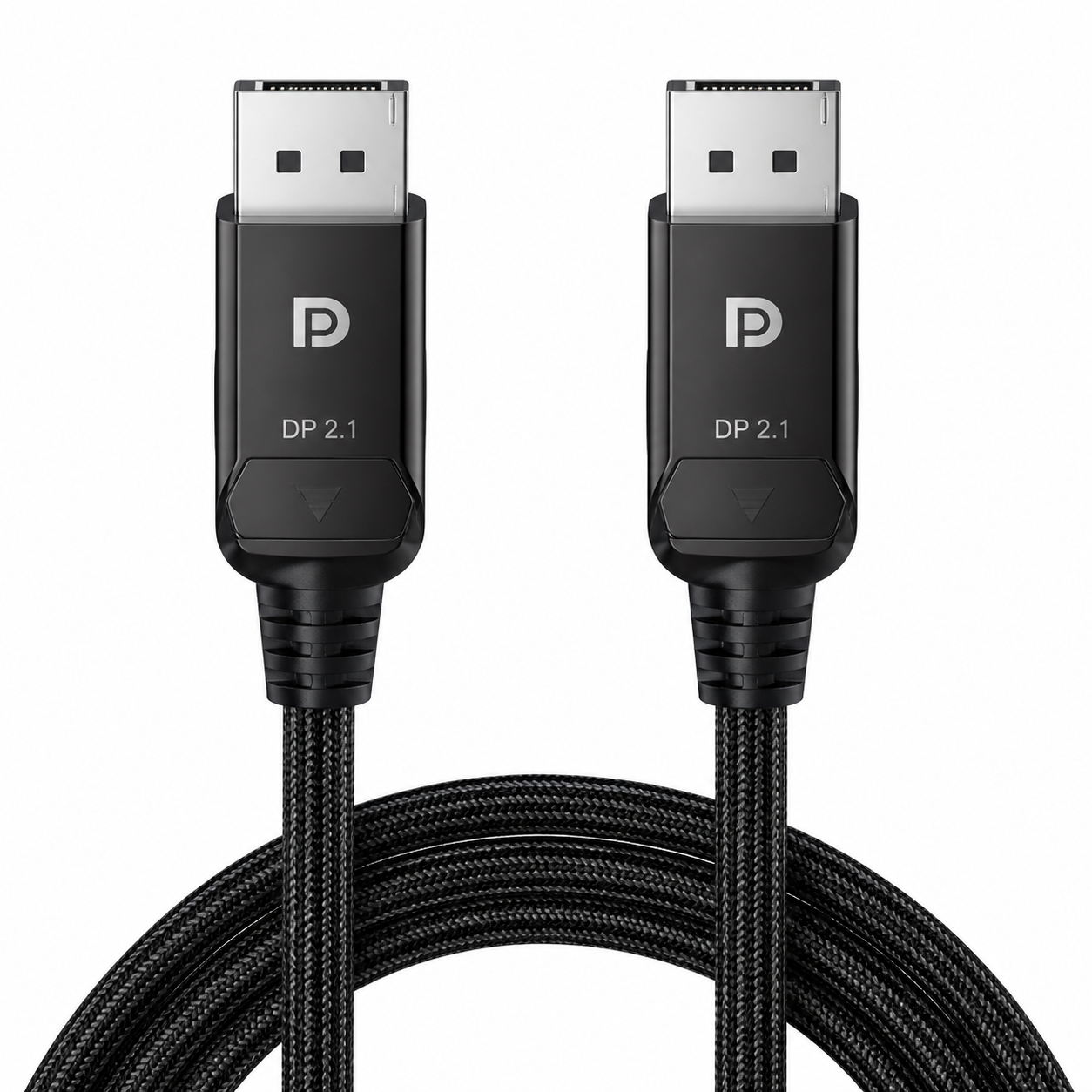

Connector A (Source)	DisplayPort 2.1 Type-A Male
Connector B (Display)	DisplayPort 2.1 Type-A Male
DisplayPort Protocols	DP2.1 (UHBR10), DP1.4, DP1.2
Cable Diameter	4.8mm
Cable Jacket Type	PVC
Cable Color	Black

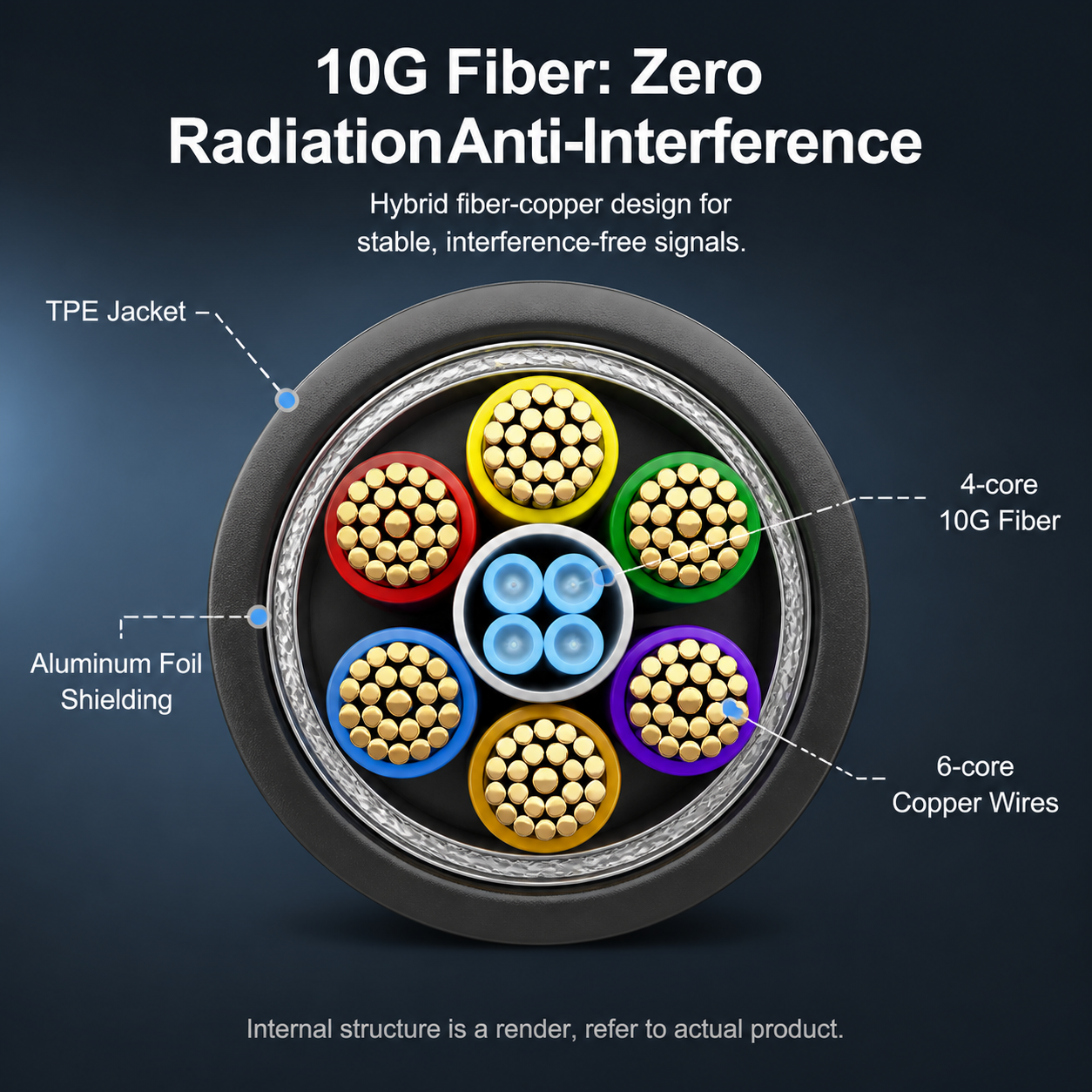

AOC Constructions	Hybrid, 4x Optical Fiber, 6x Copper Wire
Minimum Bending Radius	50mm
Operating Temperature	0ºC to 70ºC
Storage Temperature	–40ºC to 85ºC

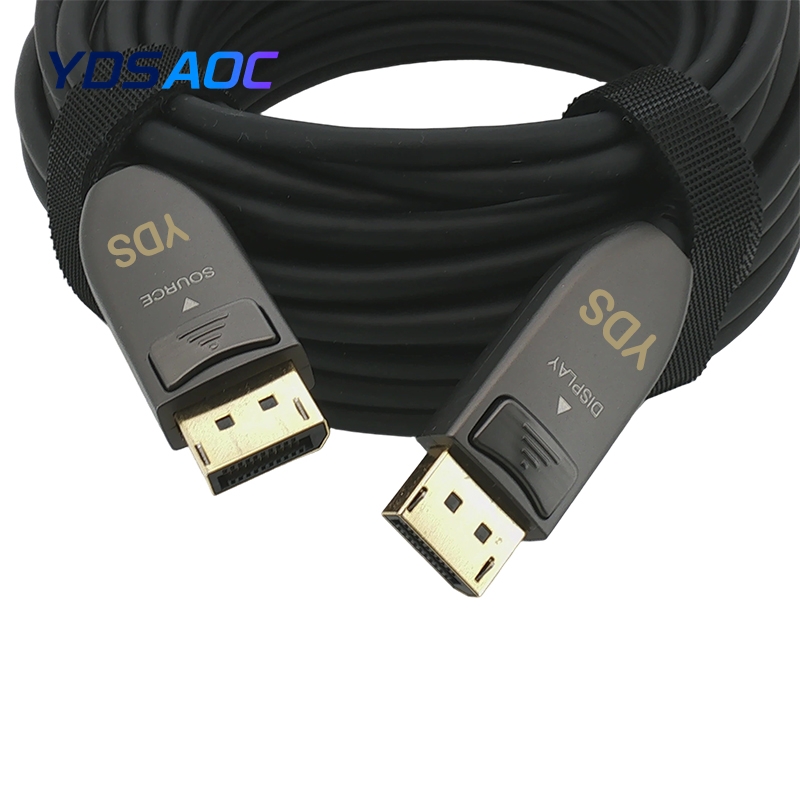

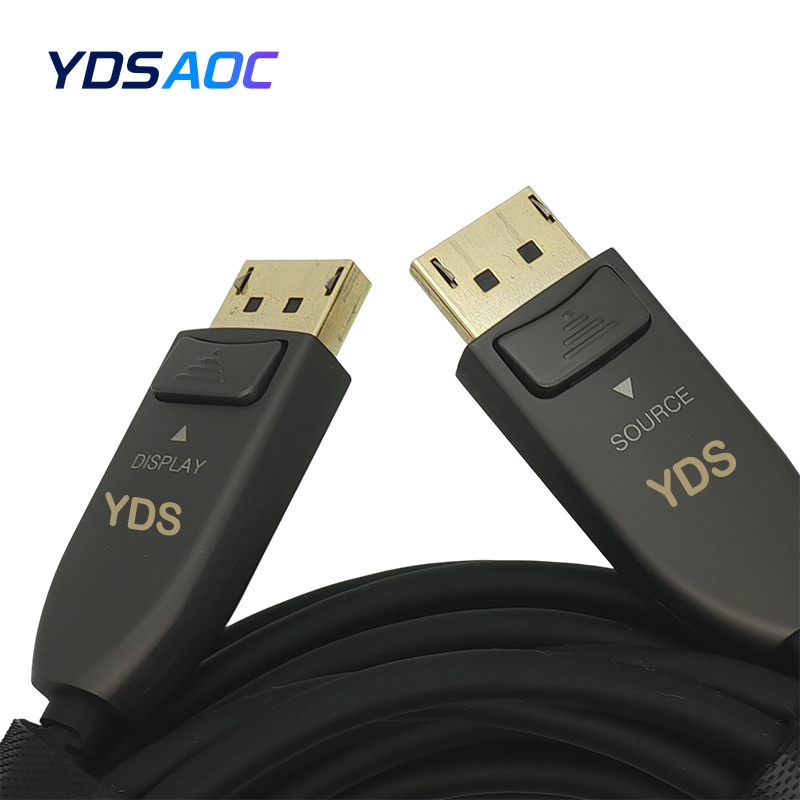

Installation Direction	One Way Direction. DP 2.1 (Source) to DP 2.1 (Display)
Power Connect	Additional Power Supply Required for Long Distance
