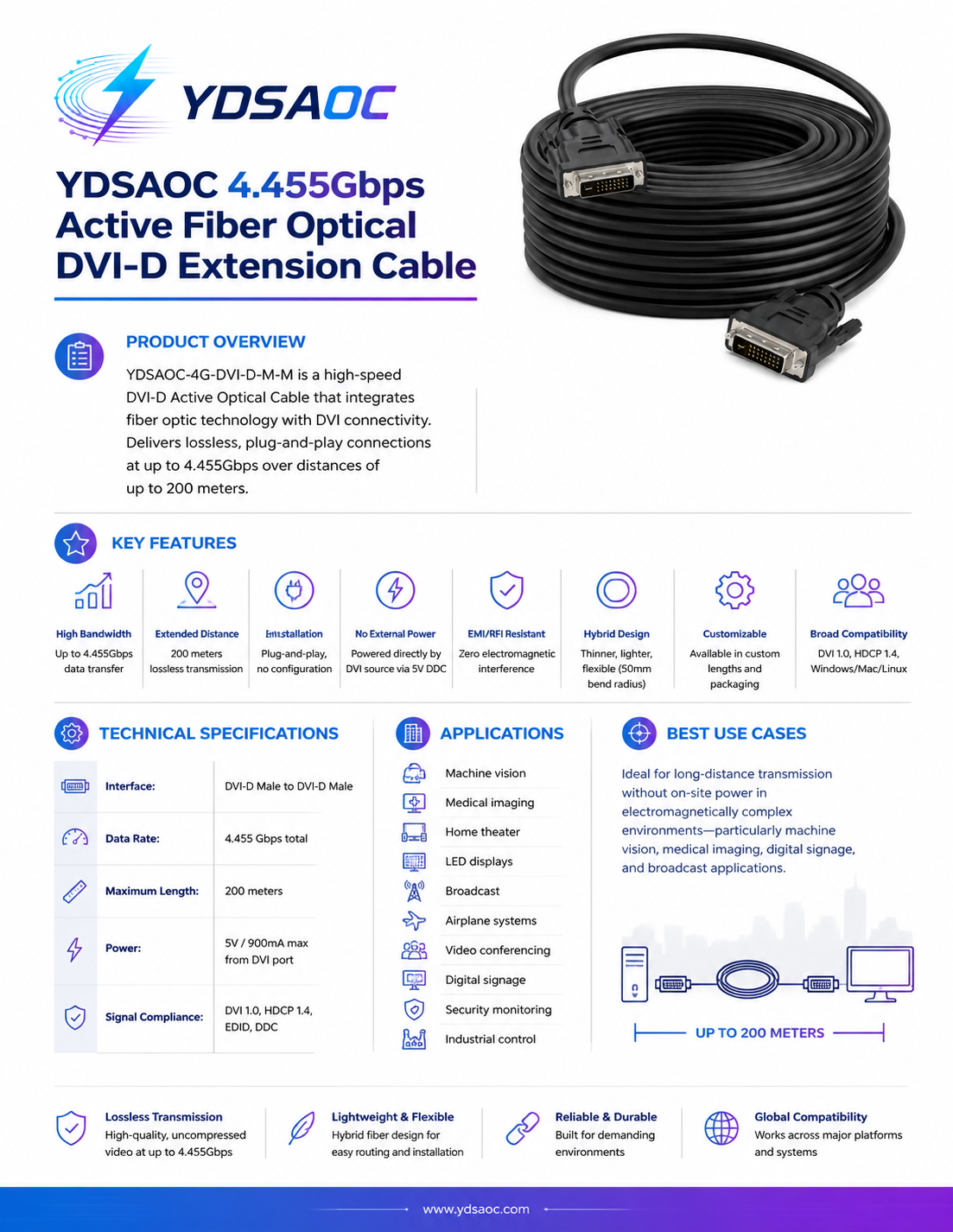

Overview

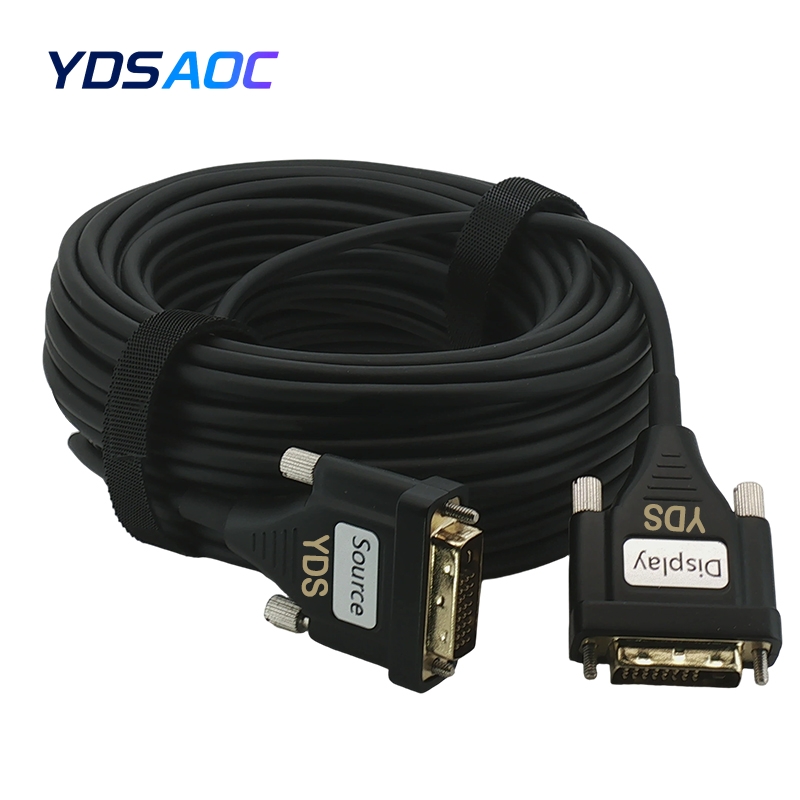

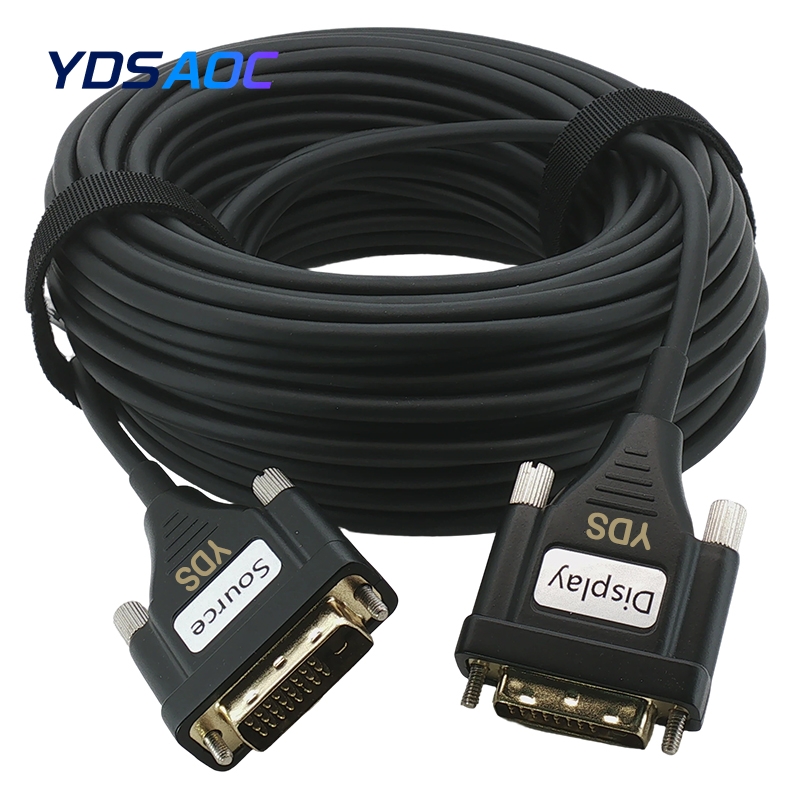

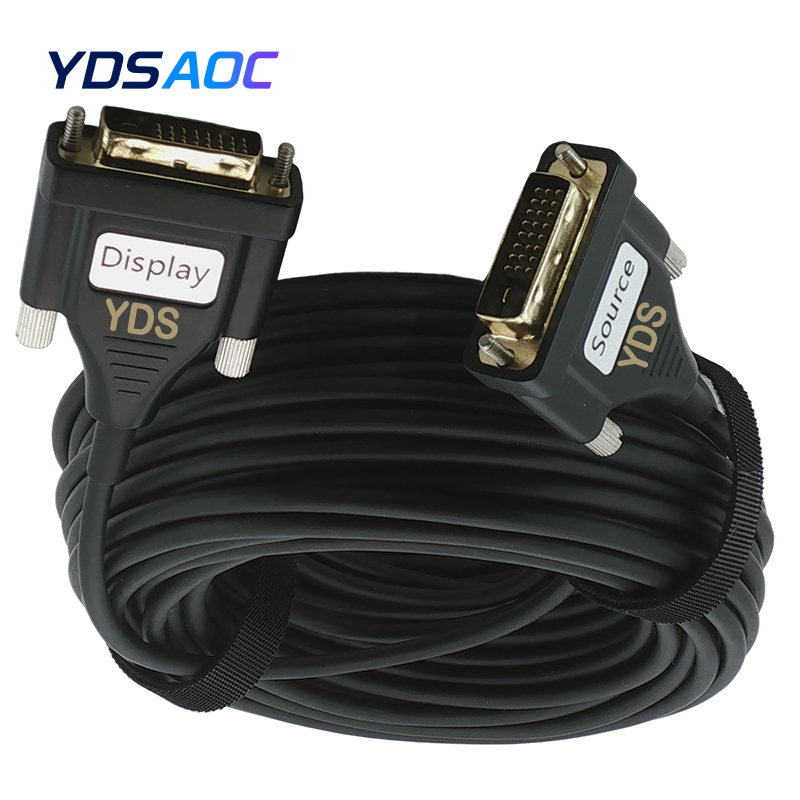

YDSAOC-4G-DVI-D-M-M is a high-speed DVI-D Active Optical Cable (AOC) that integrates fiber optic technology with DVI connectivity to overcome the distance and interference limitations of traditional copper cables. Also referred to as a Fiber Optic DVI Cable, Optical DVI Cable, or Hybrid DVI AOC, it delivers lossless, plug-and-play high-bandwidth connections at up to 4.455Gbps over distances of up to 200 meters.



Key Features

• High Bandwidth: Compliant with the latest DVI-D standards, supporting super-speed data transfer up to 4.455Gbps.
• Extended Distance: Delivers lossless signal transmission up to 200 meters (600 feet), far exceeding copper cable limits.
• Easy Installation: Plug-and-play on both ends with a unidirectional design—no configuration required.
• No External Power Needed: Powered by the DVI source via DDC 5V, eliminating the need for AC adapters or USB power.
• Excellent EMI/RFI Resistance: Nearly zero electromagnetic/radio-frequency interference profile, ensuring stable, radiation-free operation in complex environments.
• Hybrid Fiber/Copper Design: Combines optical fibers with copper wiring for a thinner, lighter, and more flexible cable (50mm bend radius) compared to conventional copper cables.
• Customizable Options: Available in custom lengths (up to 200m), logos, and packaging.
• Broad Compatibility: Supports DVI 1.0 and HDCP 1.4; works with Windows, Mac OS, and Linux.
• Lossless Transmission: Transmits WUXGA (1920x1200) at 60Hz or 1080p/4K30Hz signals without scaling or compression.
• Certifications: Meets FCC/CE standards for EMI/RFI emissions.



Technical Specifications

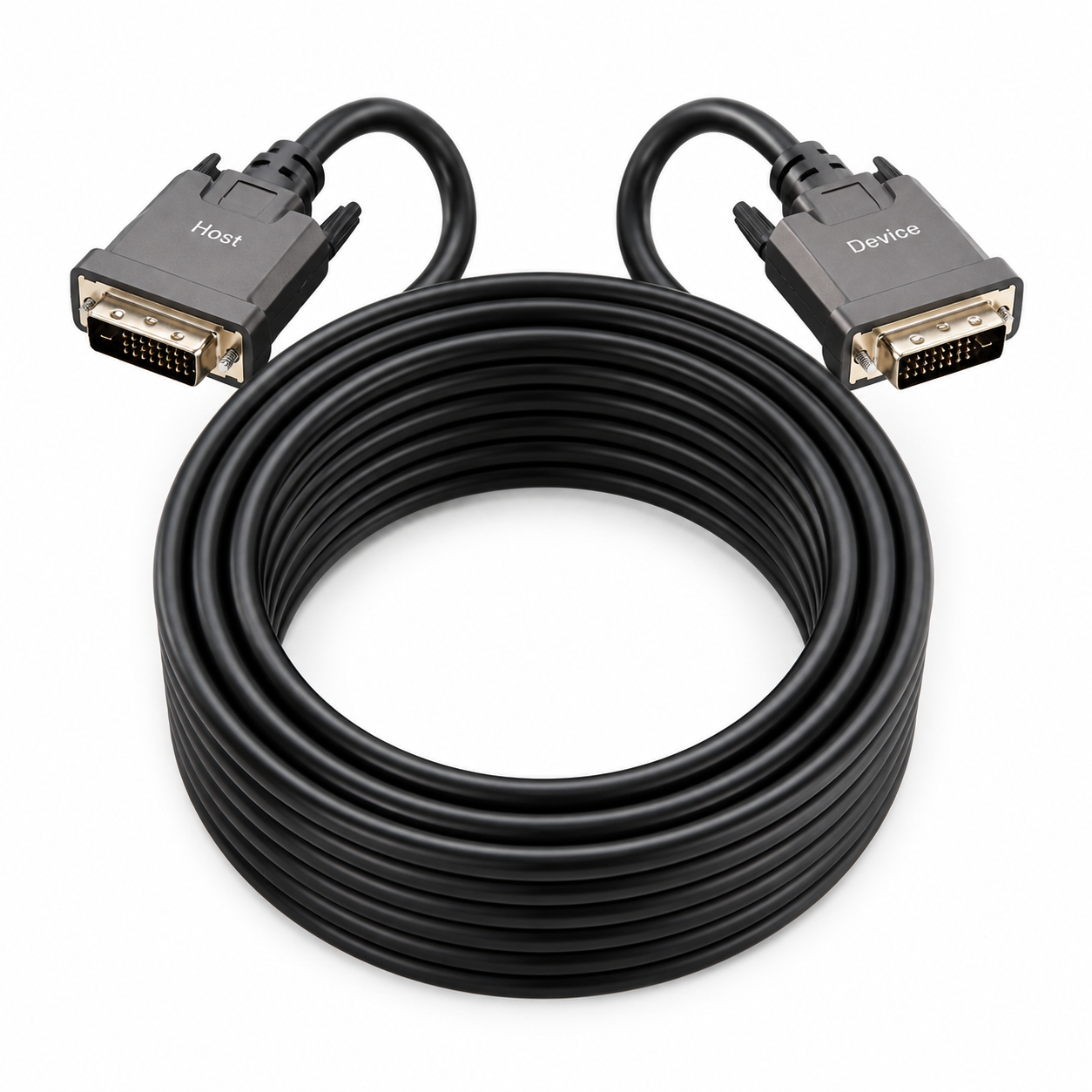

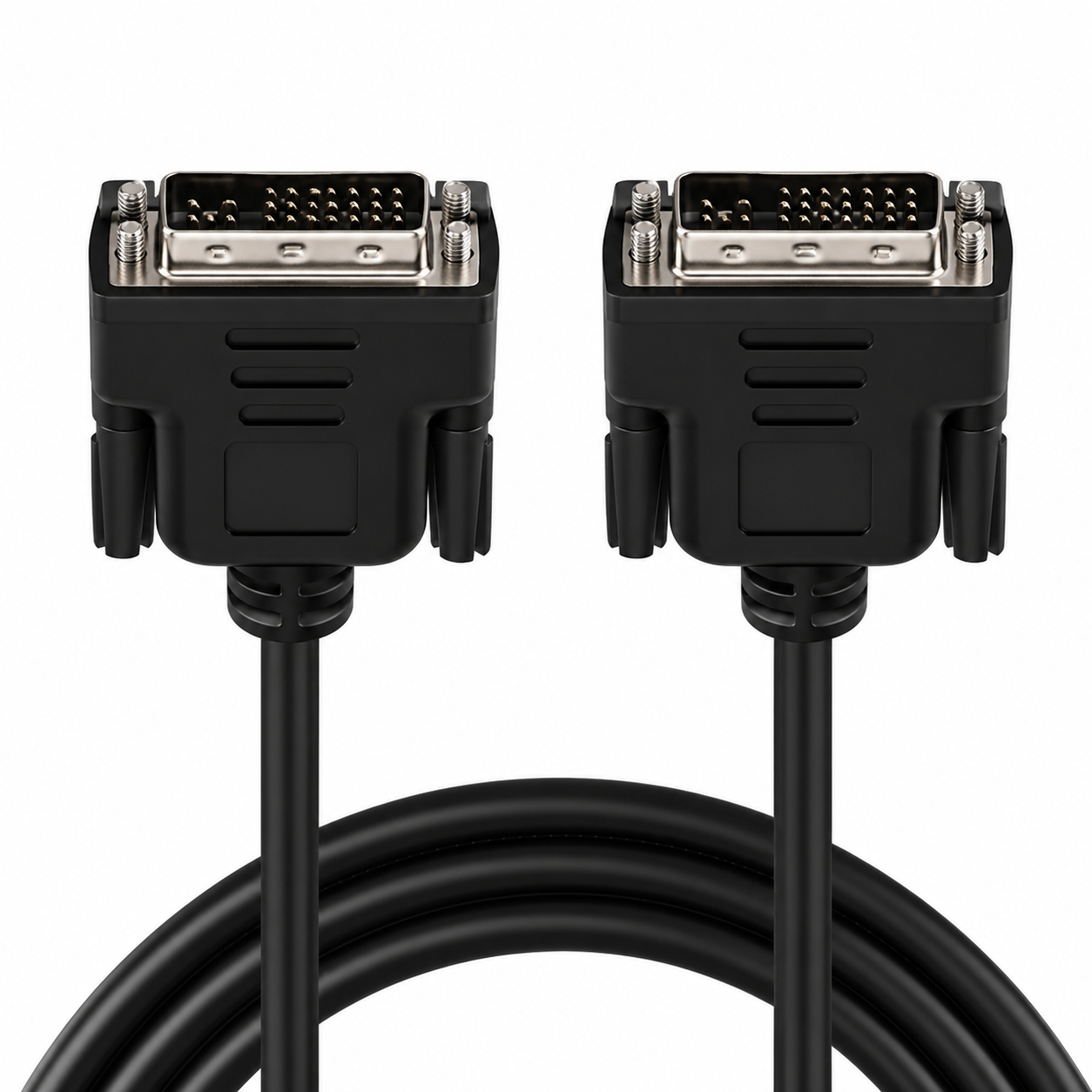

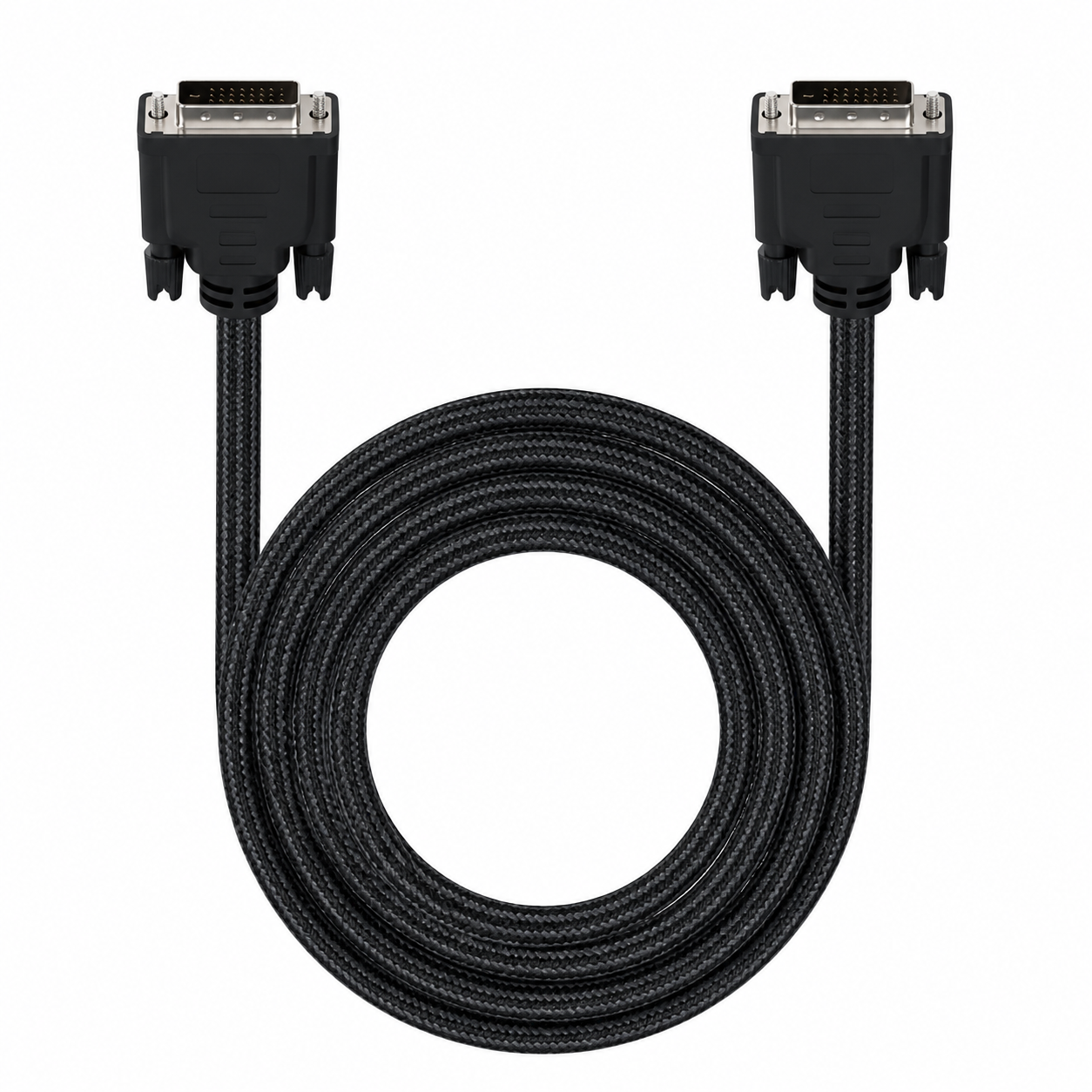

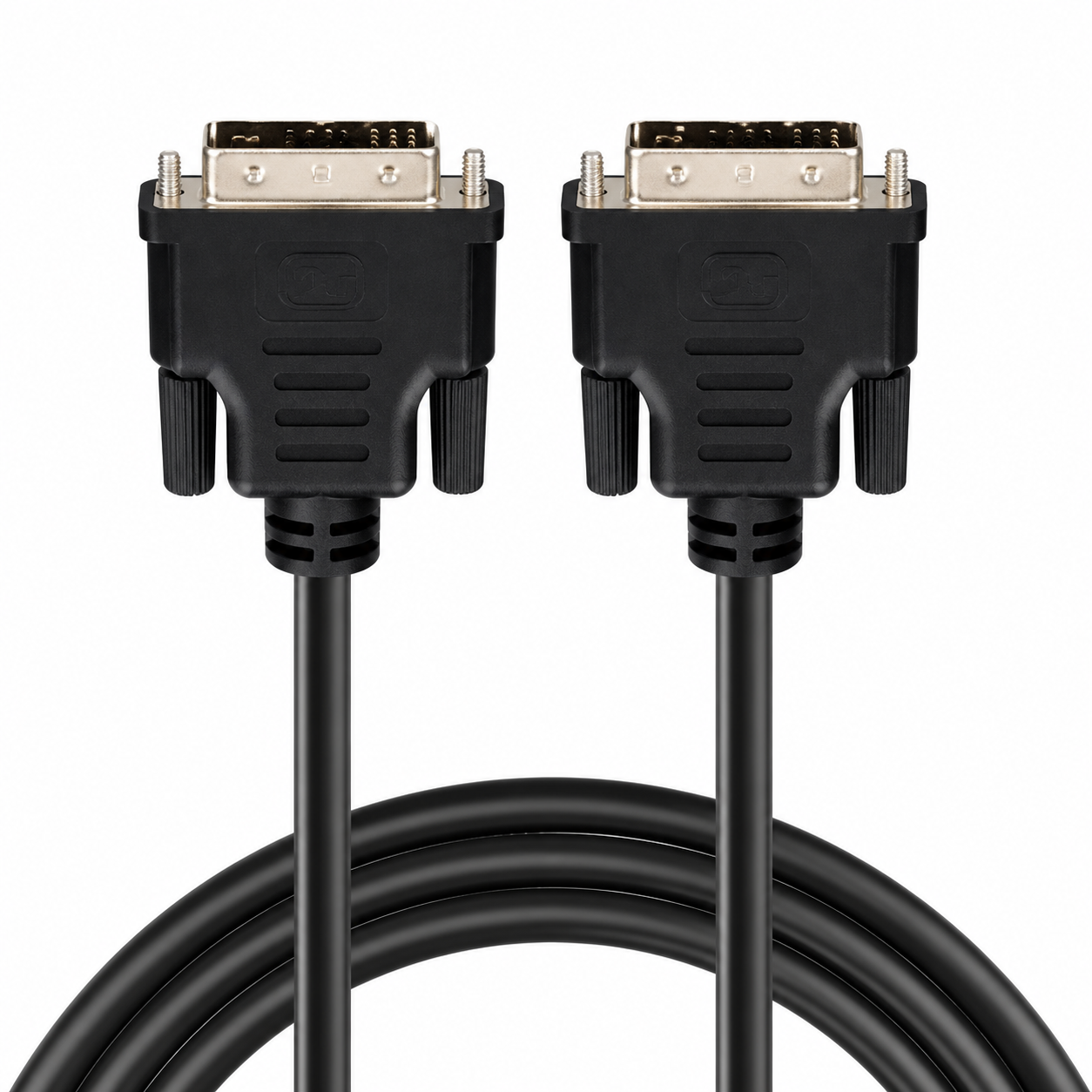

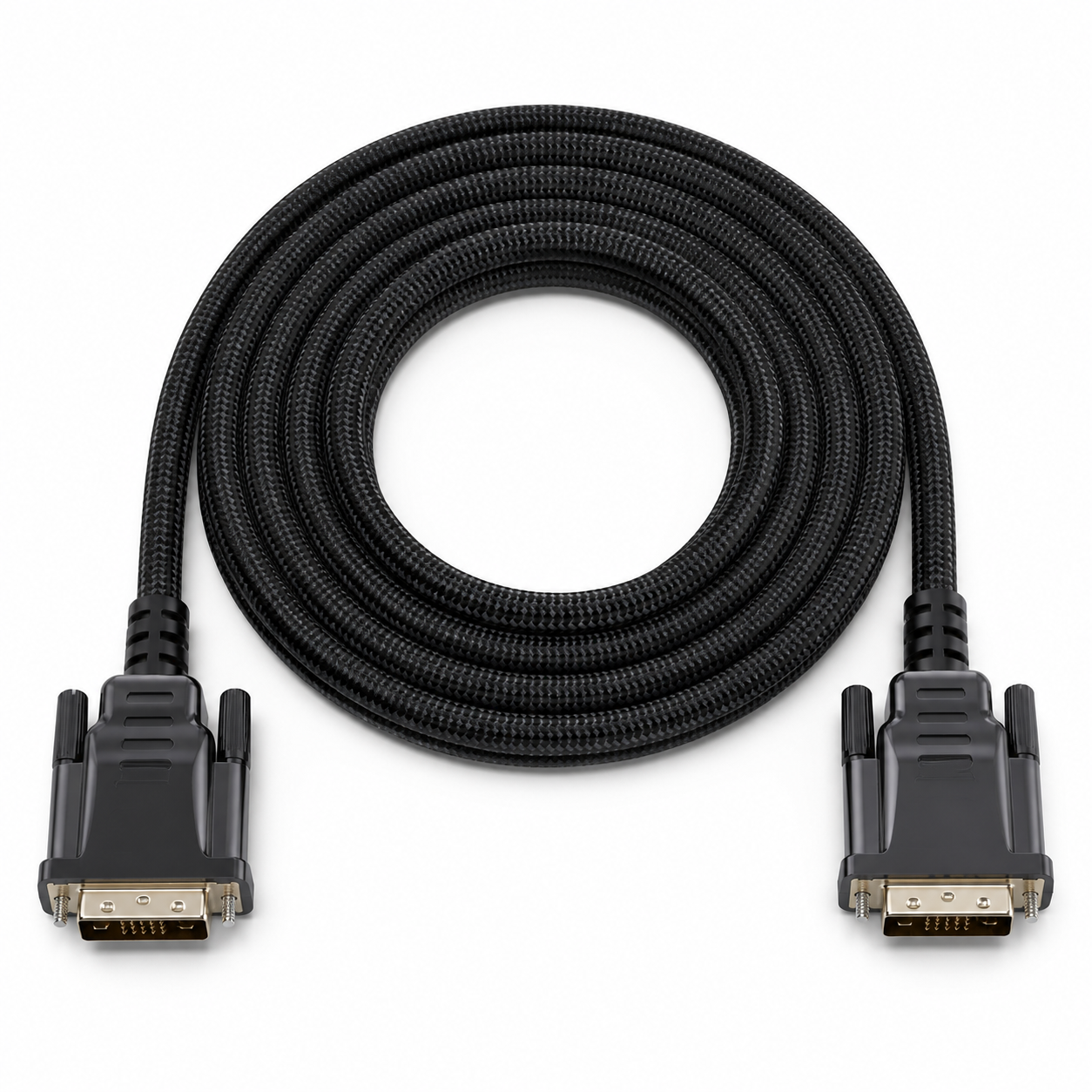

• Interface: DVI-D Male to DVI-D Male (locked screws on connectors)
• Data Rate: Up to 1.485 Gbps per lane / 4.455 Gbps total
• Maximum Length: 200 meters
• Power: Supports 5V / 900mA max, sourced directly from the DVI port
• Signal Compliance: DVI 1.0, HDCP 1.4, EDID, DDC communications



Applications

The cable is well-suited for environments requiring extended distances, no on-site power, and high reliability in electromagnetically complex settings:

• Machine vision and Camera Link systems
• Medical imaging equipment
• Home theater, Blu-ray, 3D video, projectors, set-top boxes, DVRs, and game consoles
• LED signboards and stadium displays
• Radio and TV broadcast stations

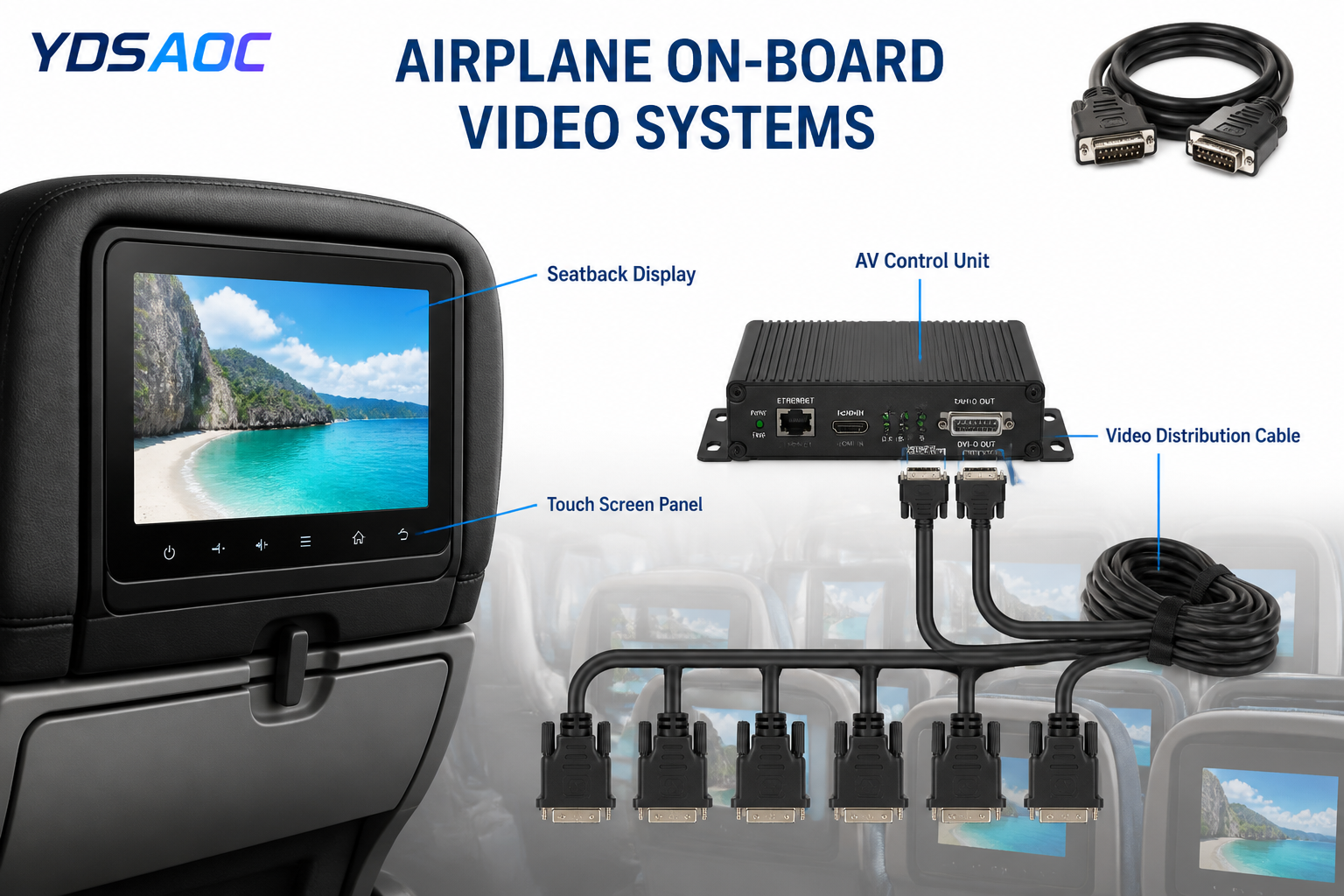

• Airplane on-board video systems
• Conference rooms and video conferencing equipment
• Digital signage and security monitoring
• Industrial control and device sharing (print, scan, storage)

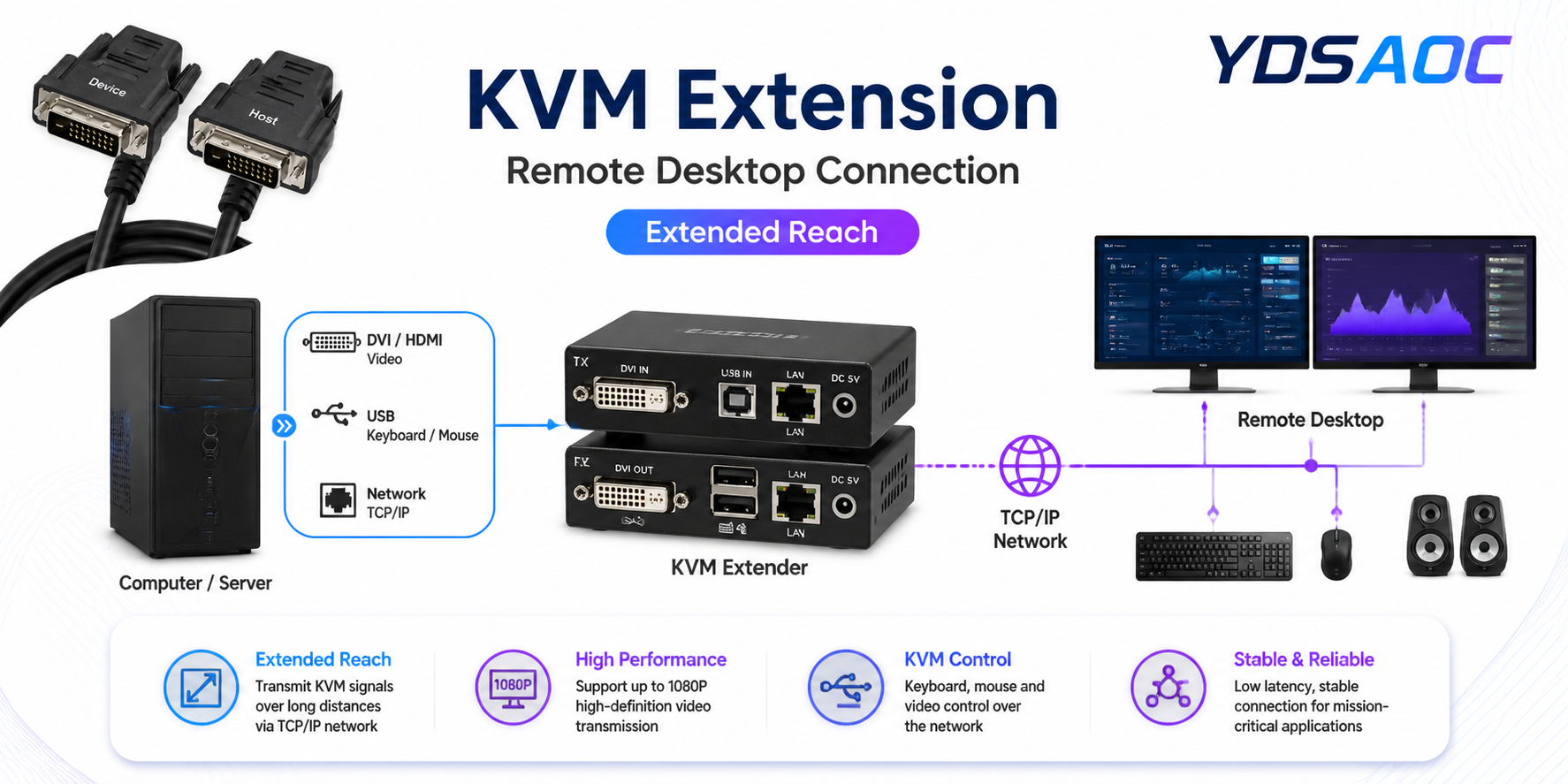

• KVM extension and remote desktop connections



Best Use Cases



Ideal for environments demanding long-distance data transmission without on-site power, combined with high reliability in electromagnetically noisy surroundings—particularly machine vision, medical imaging, digital signage, and broadcast applications.



YDSAOC Model Number	YDSAOC-4G-DVI-D-M-M
Order Part Numbers	YDSAOC-4G-DVI-D-M-M-SW1003 YDSAOC-4G-DVI-D-M-M-SW50015 YDSAOC-4G-DVI-D-M-M-SW100030 YDSAOC-4G-DVI-D-M-M-SW5000150 YDSAOC-4G-DVI-D-M-M-SW10000300
Length	1m(3ft), 5m(15ft), 10m(30t), 50m(150ft), 100m(300ft)
Maximum Support Length	up to 200m(600ft)
Maximum Data Speed	up to 4.455Gbps (1.485Gbps per channel)
Full Feature AV Functions	EDID
Maximum Resolutions	1080p, 1080i, 720p

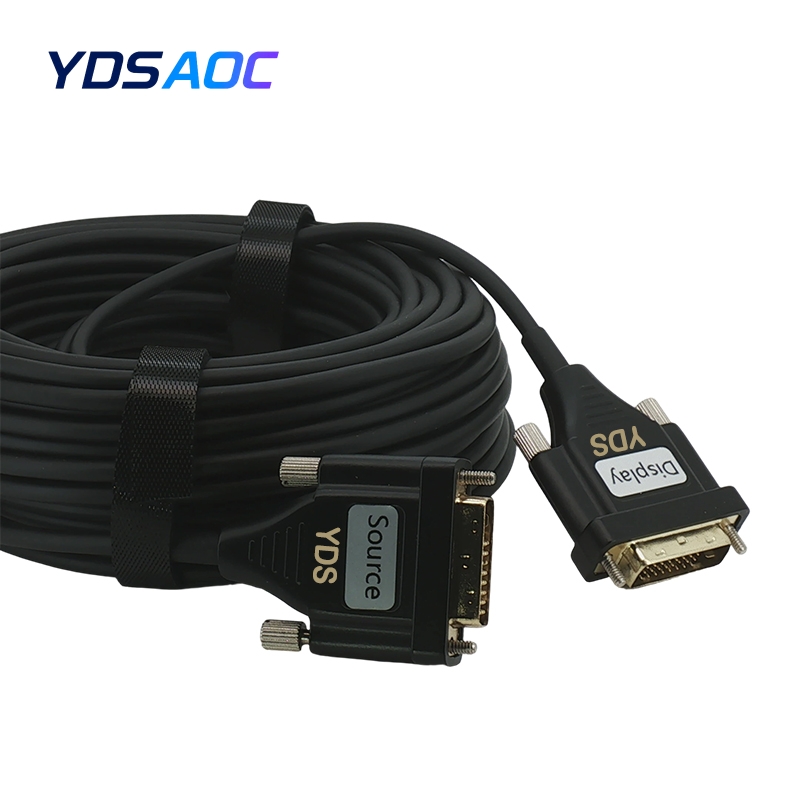

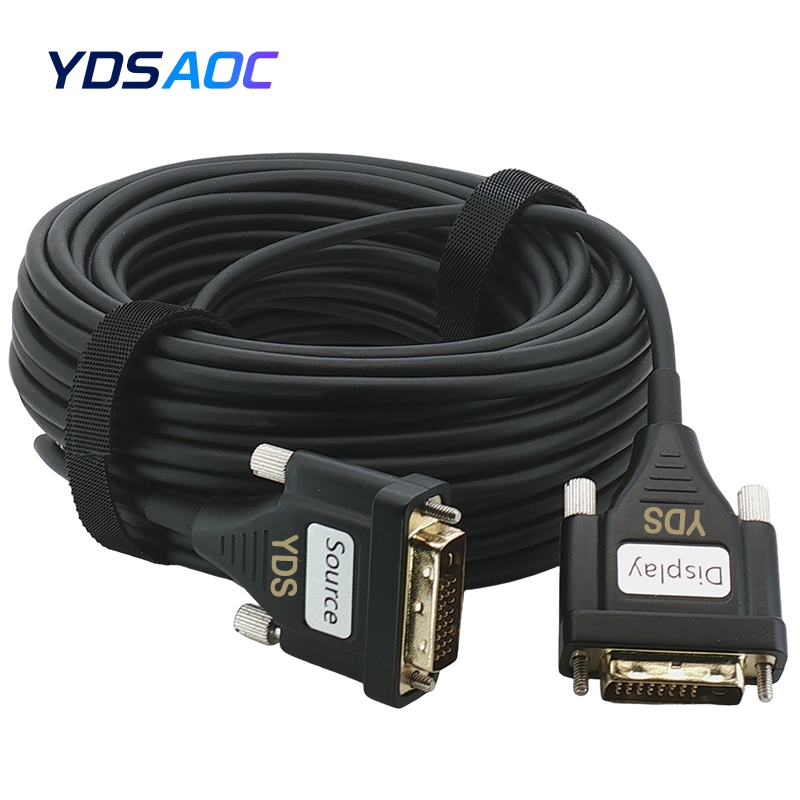

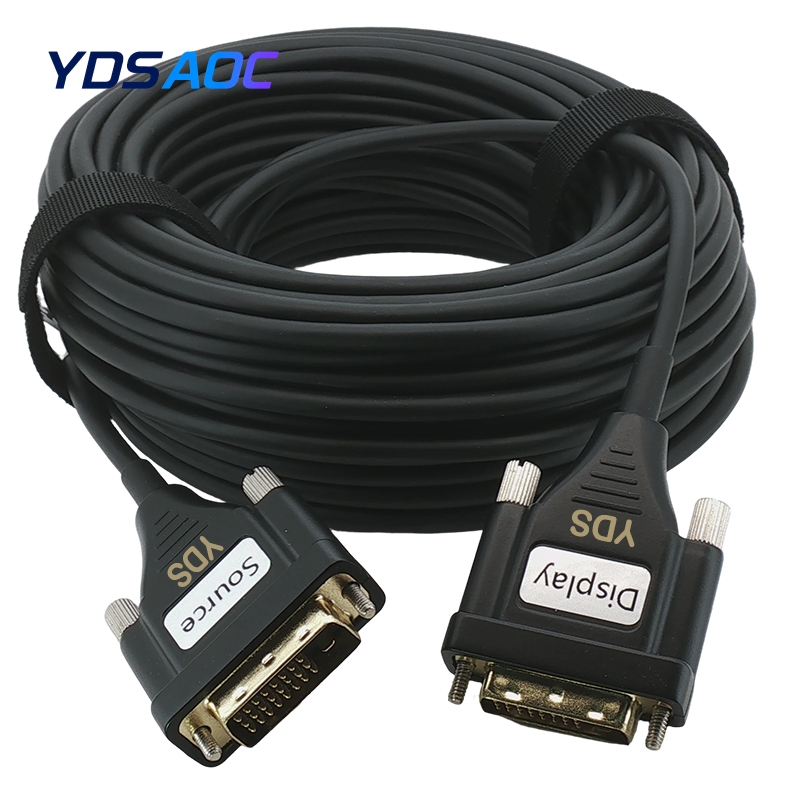

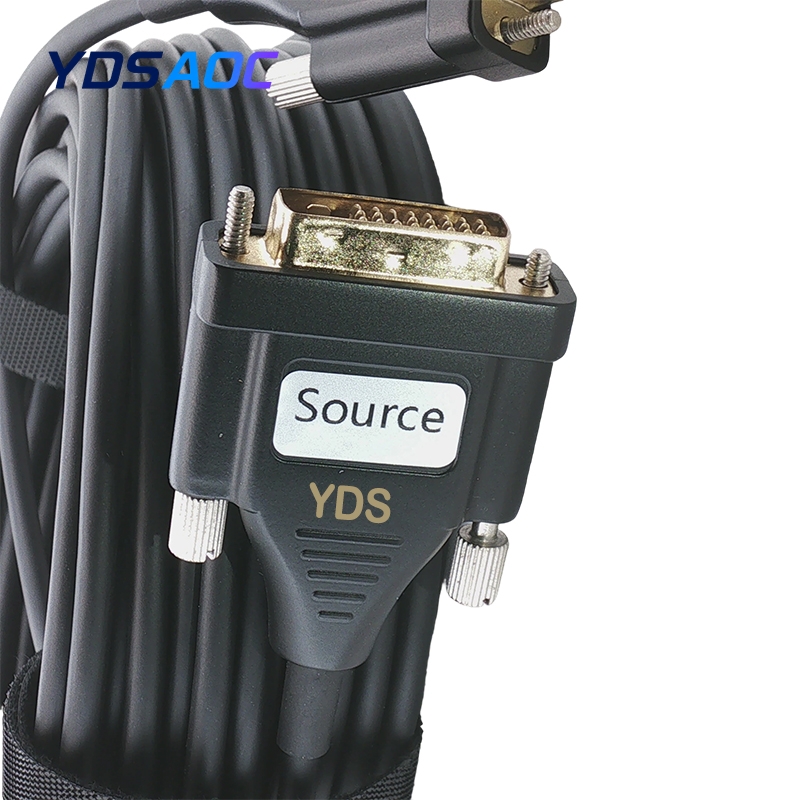

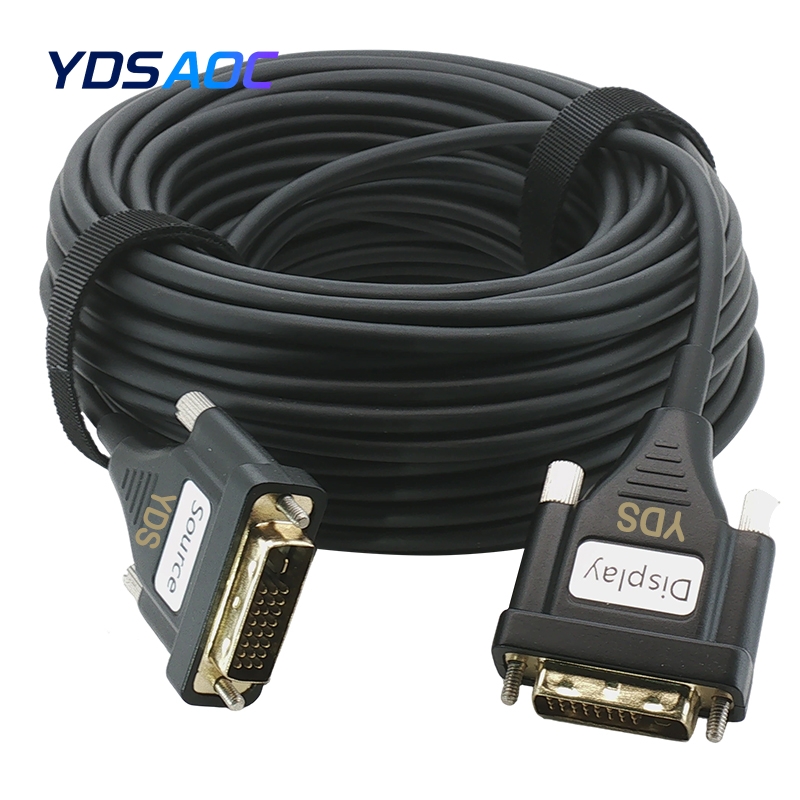

Connector A (Source)	DVI-D Male with Screws
Connector B (Display)	DVI-D Male with Screws
Cable Diameter	4.8mm
Cable Jacket Type	PVC
Cable Color	Black

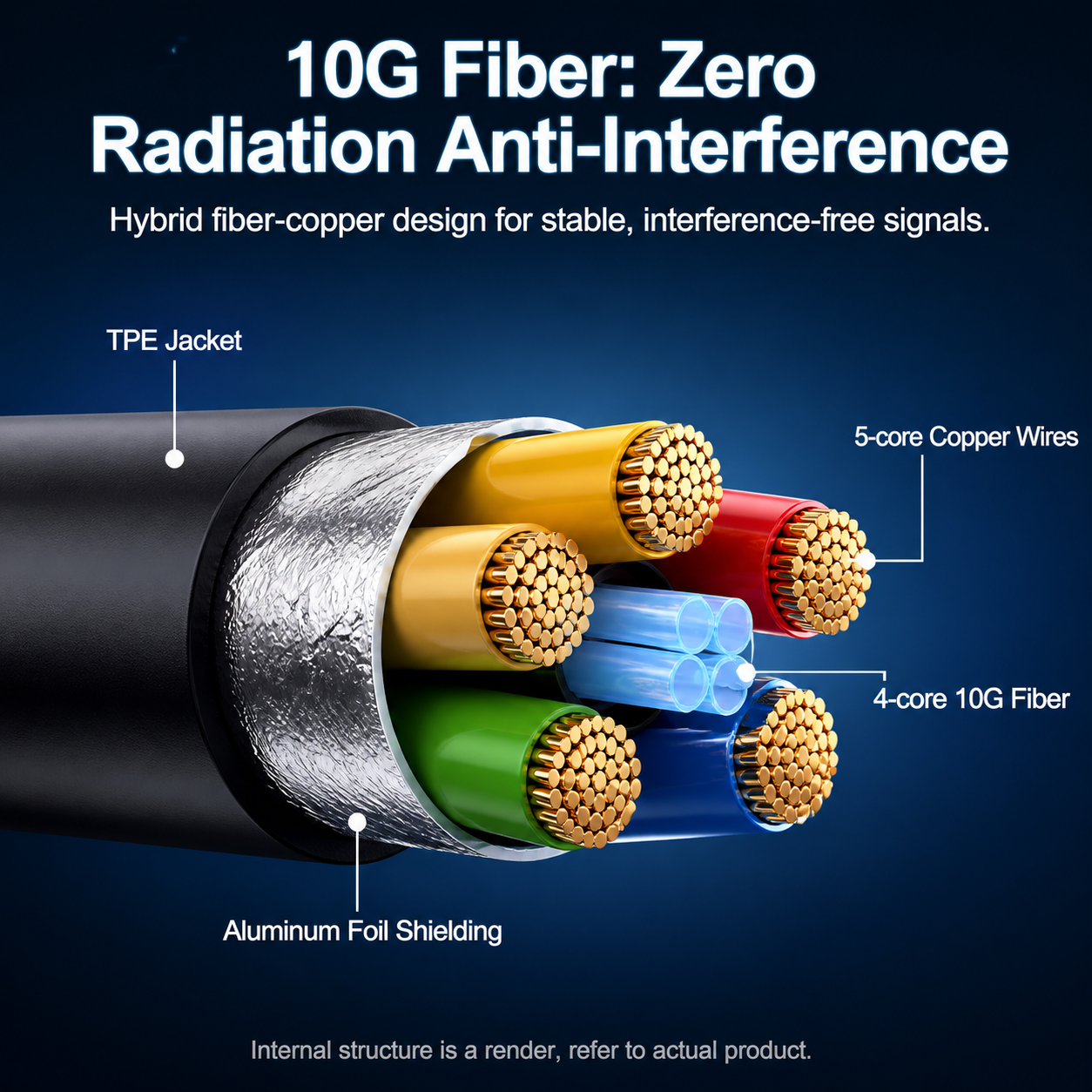

AOC Constructions	Hybrid, 4x Optical Fiber, 5x Copper Wire
Minimum Bending Radius	50mm
Operating Temperature	0ºC to 70ºC
Storage Temperature	–40ºC to 85ºC
Installation Direction	One Way Direction. DVI-D (Source) to DVI-D (Display)
Power Connect	Additional Power Supply Required for Long Distance
